In modern industrial automation, the demand for precision, load endurance, and structural reliability is scaling exponentially. At the absolute center of this technological revolution is the RV-E Cycloid Pin Wheel Gearbox. Known as the structural backbone of high-capacity articulative units and robotic joints, the RV-E configuration represents a significant advancement over classical planetary gears. It offers zero-backlash operation, extreme torsional stiffness, and high shock-load limits in a compact package.
Unlike conventional multi-stage gear trains that suffer from cumulative backlash, tooth wear, and low rotational stiffness under variable radial forces, the RV-E design couples a primary spur gear reduction stage with a secondary cycloidal pinwheel stage. This dynamic configuration enables double-digit reduction ratios within a highly compact housing. Under operation, multiple cycloidal pin teeth remain engaged simultaneously, distributing torque across a larger contact area and reducing mechanical stress spikes.
The primary reduction is executed via a set of spur gears connected directly to the input shaft, which drives the eccentric shafts. The secondary reduction occurs when the dual cycloidal discs, driven by these eccentric shafts, roll along the internal pins inside the main casing. This mechanism ensures transmission ratios of up to 1:160 while maintaining a backlash limit of less than 1 arc-minute.
Deciphering market dynamics, geographic distribution, and the technological roadmap for the next decade.
The global market for RV-E cycloidal speed gearboxes is growing due to rapid industrial automation and the rise of smart factories. Historically dominated by Japanese manufacturers, the industry has experienced a major shift. Quality-certified Chinese manufacturers, like Boxtop Electromechanical Equipment, have closed the technology gap by integrating advanced German and Japanese hobbing equipment, making high-precision movement control accessible worldwide.
Modern system design trends focus on miniaturization and hollow-shaft layouts. The modern RV-E series increasingly integrates hollow-shaft pathways to route sensor lines, cooling hoses, and power cables directly through the center of rotation. This configuration minimizes wear on external wiring looms, allowing collaborative robots (cobots) to operate without cable tangling issues.
The lifetime of a cycloidal drive depends heavily on material metallurgy and surface treatment. Using high-carbon chromium bearing steels (such as GCr15) alongside precise vacuum carburizing heat treatments ensures superior surface hardness (exceeding 60 HRC). This helps prevent fatigue wear on the pinwheel rolling surfaces, enabling reliable operation over 20,000+ service hours.
Analyzing direct engineering deployment across critical global industry vertices.
High-precision RV-E cycloidal gearboxes are designed to solve the challenges of demanding industrial environments. Whether enduring high temperatures in foundry operations or maintaining precision in microchip manufacturing, custom transmission profiles ensure optimal machine performance.
In 6-axis articulated industrial robots, the base (Axis 1), shoulder (Axis 2), and elbow (Axis 3) joints require immense torque capacity to handle payload extensions. The RV-E series provides the high torsional rigidity needed to prevent elastic deformation under sudden dynamic stops, ensuring overall system precision and safety.
Multi-axis metal milling requires sub-arc-minute positioning precision under heavy cutting forces. Direct-drive motors can struggle with the torque demands, whereas the RV-E speed reducer provides the necessary torque multiplier and rigidity to resist structural deflection, ensuring smooth surface finishes on machined components.
Satellite ground stations, heavy radar installations, and solar panel arrays require high torque and low backlash to maintain tracking precision. The RV-E series provides smooth movement and long-term durability in outdoor environments, helping to reduce maintenance costs.
Systematic engineering metrics for mechanical evaluation and hardware specification.
| Model Designation | Rated Output Torque (Nm) | Emergency Stop Torque (Nm) | Backlash (Arc-min) | Torsional Rigidity (Nm/arcmin) | Max Input Speed (RPM) |
|---|---|---|---|---|---|
| RV-6E | 58 | 290 | ≤ 1.0 | 22 | 6,000 |
| RV-20E | 196 | 980 | ≤ 1.0 | 54 | 5,500 |
| RV-40E | 392 | 1,960 | ≤ 1.0 | 110 | 4,500 |
| RV-80E | 784 | 3,920 | ≤ 1.0 | 250 | 4,000 |

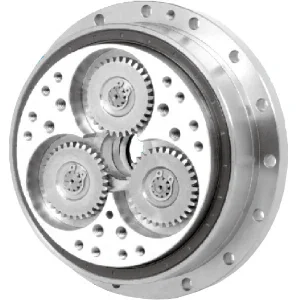

| RV-110E | 1,078 | 5,390 | ≤ 1.0 | 340 | 3,500 |
| RV-320E | 3,136 | 15,680 | ≤ 0.5 | 880 | 3,000 |
20+ Years of Excellence in Precision Motion Control & Heavy-Duty Gearbox Fabrication
Founded in Shenzhen, China, Boxtop Electromechanical Equipment (shenzhen) Co., Ltd. has grown into a premier, verified manufacturer integrating R&D, advanced production, and global sales. For over two decades, we have dedicated ourselves to one mission: engineering high-precision, heavy-duty transmission and motor solutions that power modern industrial automation.
Unlike standard component suppliers, Boxtop offers a comprehensive product ecosystem. We specialize in precision planetary gearboxes, worm gear reducers, and helical gear units, perfectly integrated with our high-torque DC motors, AC motors, and brushless alternatives. By optimizing the synergy between motor and speed reducer, we provide global OEM buyers with ready-to-install micro-drives and industrial power systems that maximize efficiency and lifespan.
Operating from our state-of-the-art facility equipped with precision German and Japanese gear-hobbing technology (such as KOEPFER and HAMMI), we enforce rigorous quality control at every stage. From rapid engineering support to mass factory production, Boxtop is the trusted China partner driving reliability for customers in the US, Europe, Russia, Southeast Asia.
An inside look at our advanced manufacturing units, CNC machineries, heat-treatment facilities, assembly lines, and gear inspection laboratories.
Understanding the engineering trajectories defining the future of industrial gear design.
The transition toward Industry 4.0 demands that speed reducers evolve from passive mechanical transmission elements into smart, communicative, and self-monitoring units. Next-generation RV-E gearboxes are expected to feature integrated sensor arrays capable of tracking vibrational patterns, thermal limits, and torque fluctuations in real-time. This dynamic telemetry data is processed on the edge, enabling predictive maintenance protocols that help reduce unscheduled downtime on manufacturing lines.
Furthermore, material sciences are driving down the physical envelope of these gearboxes. The integration of silicon nitride ceramic rolling elements and lightweight high-entropy casing alloys is projected to yield a 30% reduction in total weight while increasing structural stiffness. Future designs will also feature customized cycloidal profiles developed through AI-driven machine-learning algorithms to optimize rolling contact geometry, minimizing noise and wear.
While planetary configurations are suitable for high input speeds and moderate torque applications, cycloidal gearboxes provide superior shock load capacity (up to 5x rated torque) and low angular backlash (< 1 arcmin). This makes the RV-E series the preferred choice for precise positioning tasks in multi-axis automation setups.
