Product Description

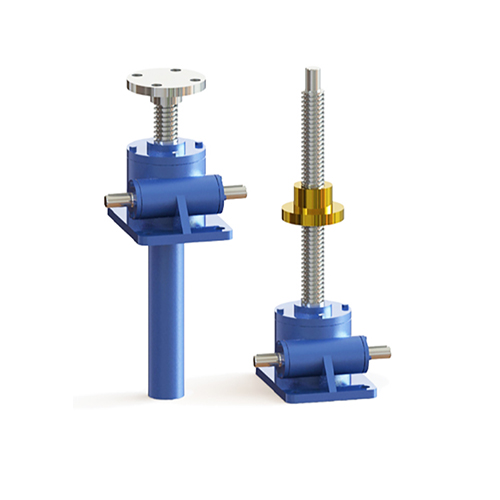

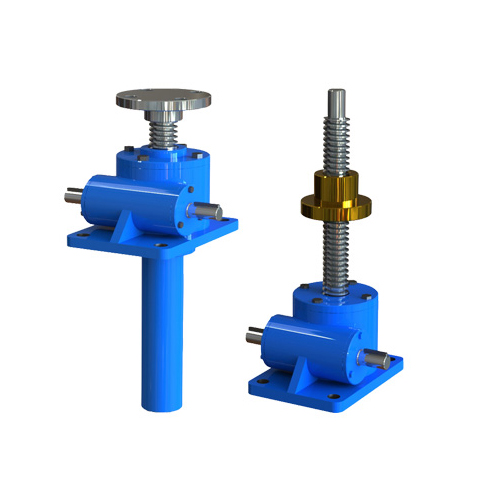

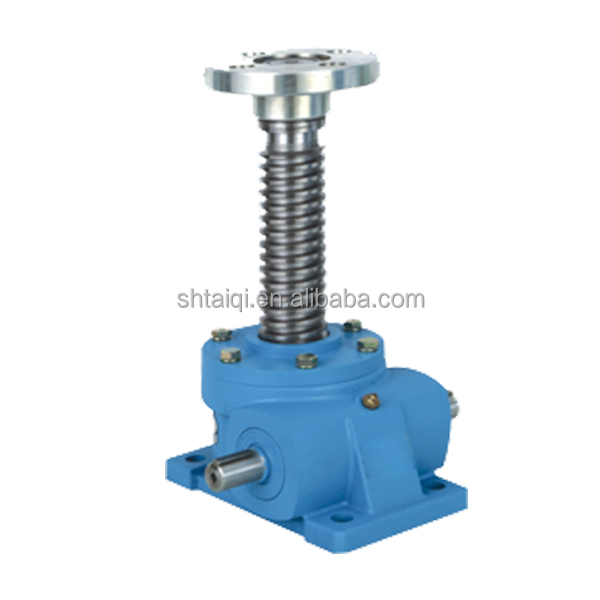

SWL Screw Lift
Product Presentation
Product Description
1
SWL screw lift is a basic crane component, featuring a compact structure, small size, light weight, and no noise. It offers safety, convenience, flexibility, high reliability, and widespread power source support. It can be used single or in combination, and accurately controlled for height adjustment via motor or manual drive.
2
To improve efficiency and carrying capacity, we utilize special, advanced technology to enhance overall performance to meet demanding customer requirements.
3
Widely used in machinery, metallurgy, construction, water conservancy, chemical, medical, and sports industries for lifting, dropping, propulsion, flipping, and position adjustment.
4
Available in different structures and assembly types. Note: While big wheel speed ratios have self-locking functions, dynamic motor braking is recommended for high vibration or shock loads.
Technical Specifications
Technical Parameters

1. Structure Types: Type 1 - Screw axial movement (Rotating/Non-rotating); Type 2 - Screw rotates, nut axially moves.

2. Assembly Types: A type - Upward movement; B type - Downward movement.

3. Screw Head Types: Cylindrical, Flange, Screw-type, or Flat head type depending on structure.

4. Transmission Ratio: Normal ratio (P) and Slow ratio (M).

Product Specifications
Product Diagram
Type SWL Screw Jack Reducer
Color Silver and Blue
Packing Carton, Honey Comb Carton, Wooden Case with wooden pallet
Warranty 1 Year
Input Power 0.05kw, 0.1kw, 0.2kw, 0.4kw, 0.75kw, 2kw, 2.5kw, 5kw, 11kw, 15kw
Usages Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Wood working, Glass, New energy, Mine, Heavy industry equipment, Industrial automation
Factory and Quality Control
Production Line
Manufacturing
Factory Facility
Certificates and Feedback
Certification
Customer Feedback
Logistics and Payment
Logistics Information
Frequently Asked Questions
Are you manufacturer or trader?
We are manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
What're your main products?

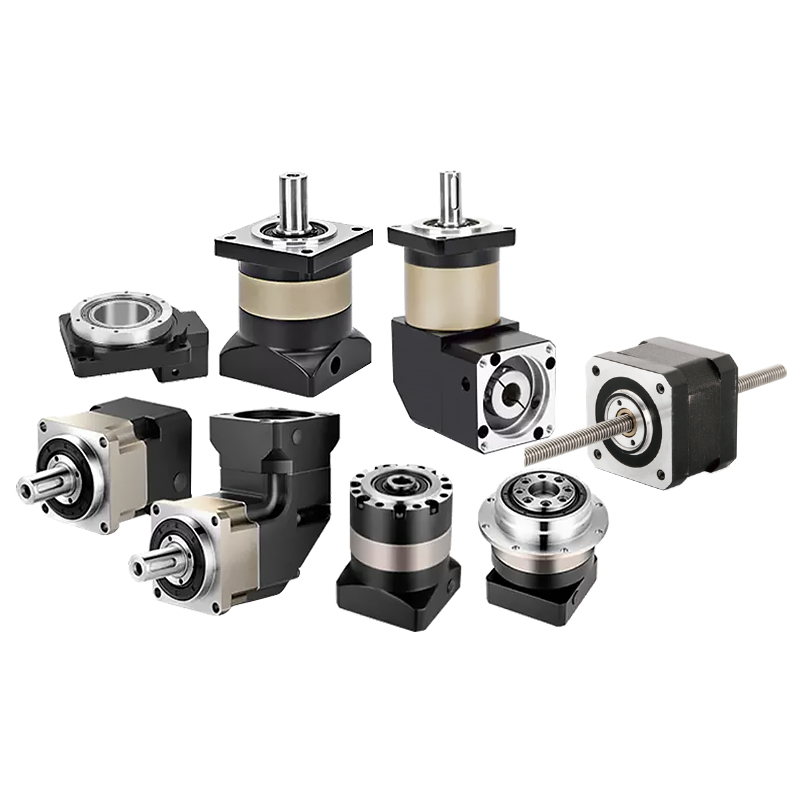

We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc.
How to select a suitable gearbox?
Please show us your motor details or drawings. Advise working condition, load, output torque, output speed or reduction ratio, and backlash. We will then recommend the suitable model.
Can I get the 3D and 2D drawings?
Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Do you have an individual design service?
Yes, we would like to design products individually for our customers, although it may involve mold development costs and design charges.
What's your lead time?
Generally, we keep stocks of regular standard products. If out of stock, it takes 15-20 days. Customized products may take longer depending on specific orders.
