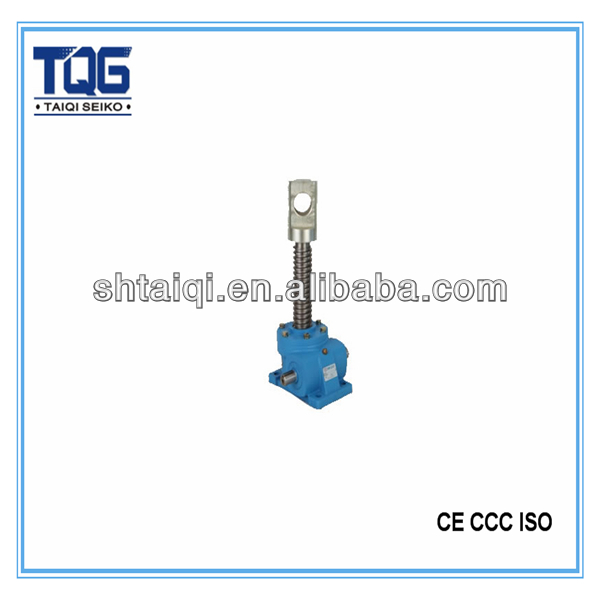

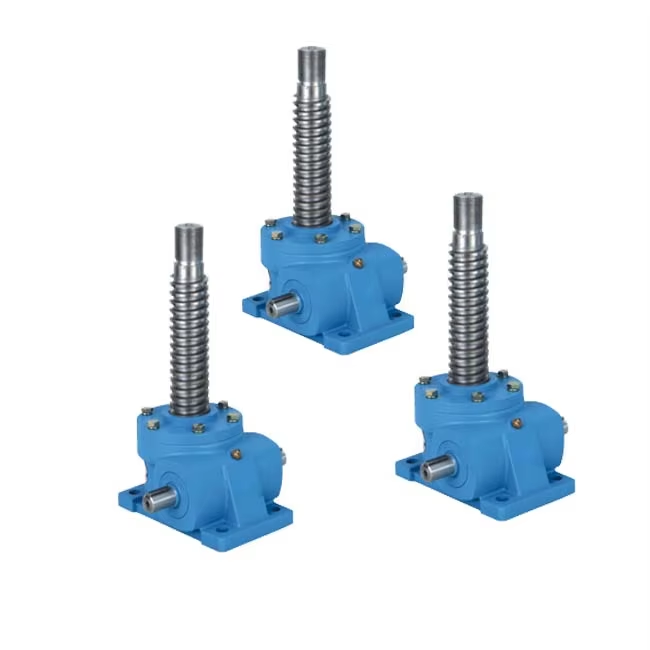

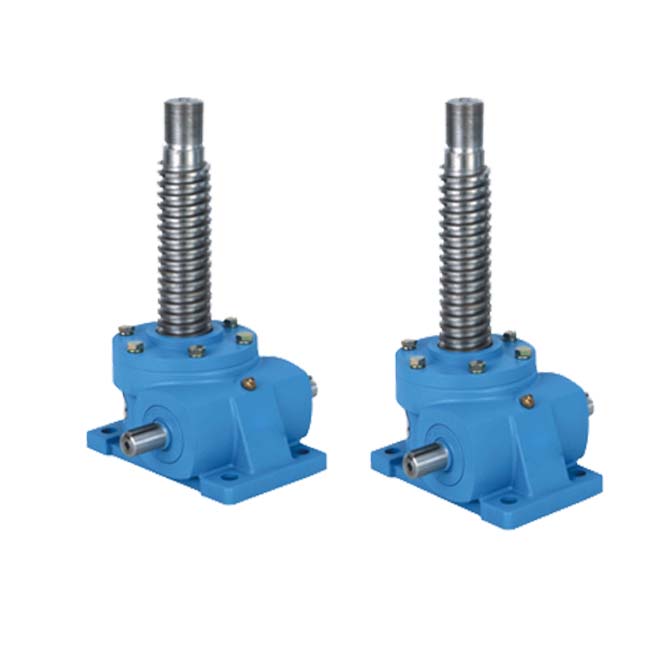

TQG SWL Series Motorized Worm Screw Jack Electric Steel/Cast Iron 4-50:1 Ratio ISO9001 CE CCC Certified

📦 Product Description

1. SWL screw lift is a basic crane component, has a compact structure, small size, light weight, no noise, safety, convenience, flexibility, high reliability and widespread power source, supporting multi-function, long life and so many advantages. Can be single or in combination, can be accurately controlled by certain procedures to enhance or advance height adjustment can be directly driven by a motor or other power, you can also manually.

2. In order to improve efficiency and carrying capacity of screw lift, developed a special, advanced technology to improve the overall performance of lifts to meet the requirements of our customers.

3. SWL screw lift with lift, drop and accessories by means of propulsion, flip and adjust the position of various heights and many other features, widely used in machinery, metallurgy, construction, water conservancy, chemical, medical, sports and other industries.

4. Screw lift has a different structure type and assembly type, lifting height can be customized to user requirements. Note: SWL screw lift in the big wheel speed ratio with self-locking function, but when subjected to large vibration or shock loads may cause failure, please use braking devices for safety.

🛠️ Technical Parameters

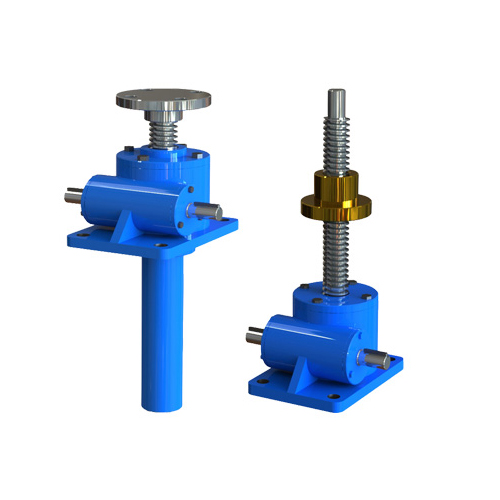

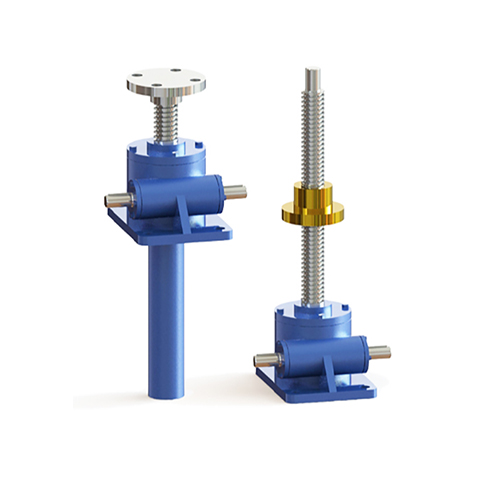

Structure Type 1: Screw axial movement (Rotating/Non-rotating F).
Structure Type 2: Screw rotates, nut axially movement.
Assembly Type: A type (Upward) or B type (Downward).
Screw Head Types: Cylindrical, Flange, Screw-type, Flat head type.
Transmission Ratio: Normal ratio (P), Slow ratio (M).

🔍 Product Details

Type	SWL Screw Jack Reducer
Color	Silver and Blue
Packing	Carton, Honey Comb Carton, Wooden Case with wooden pallet
Warranty	1 Year
Input Power	0.05kw, 0.1kw, 0.2kw, 0.4kw, 0.75kw, 2kw, 2.5kw, 5kw, 11kw, 15kw
Usages	Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood working, Glass, New energy, Mine, Industrial automation

🏭 Factory & Quality Control

🚢 Logistics & Feedback

❓ Frequently Asked Questions

Are you a manufacturer or trader?

We are a manufacturer. You are sincerely welcome to visit our facility, and we can also arrange a video conference at your convenience.

What are your main products?

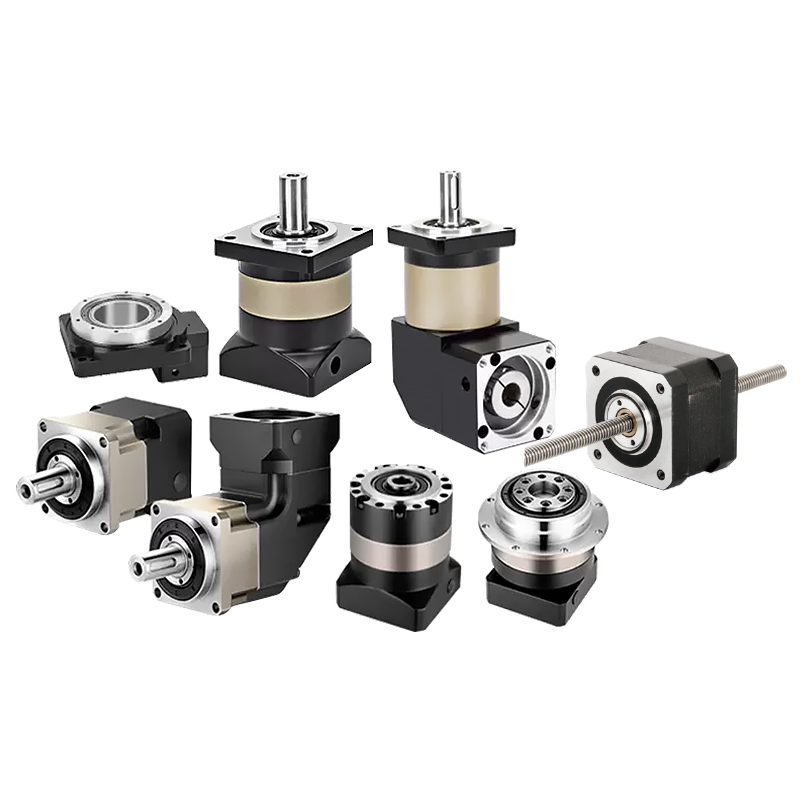

We supply planetary gearboxes, harmonic gearboxes, steering gearboxes, RV cycloidal pin-wheel gearboxes, worm gearboxes, servo/stepper motors, electric cylinders, slides, and couplings.

How do I select a suitable gearbox?

Please provide motor details, drawings, working conditions, load, output torque, speed/reduction ratio, and backlash requirements. We will guide you step-by-step.

Can I get 3D and 2D drawings?

Yes, we provide standard drawings. The input size of the gearbox can also be customized to fit different motors.

Do you offer individual design services?

Yes, we can design products individually for our customers, though this may involve mold development costs and design charges.

What is your typical lead time?

Standard products are often in stock. If not, it typically takes 15-20 days. Customized products may take longer depending on specific order requirements.
