Product Overview

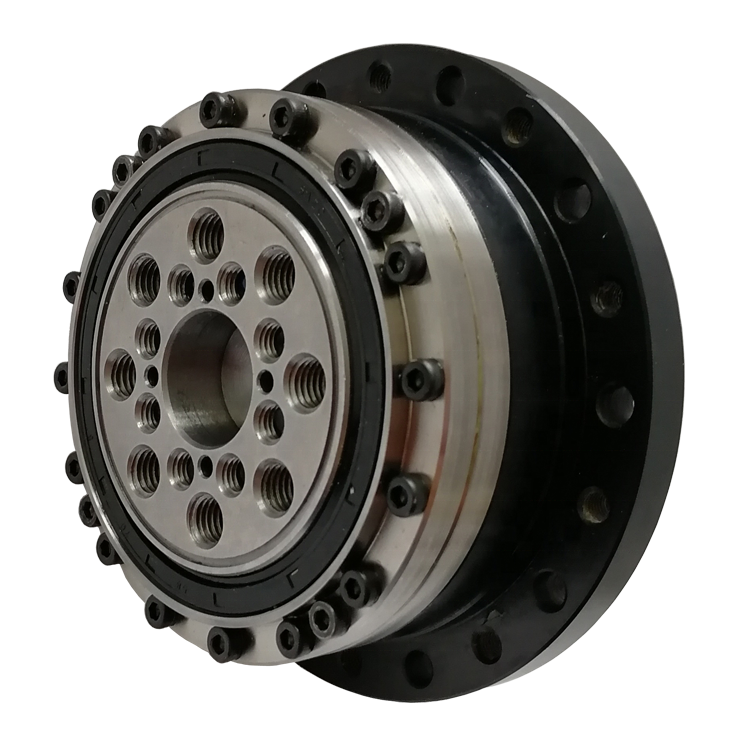

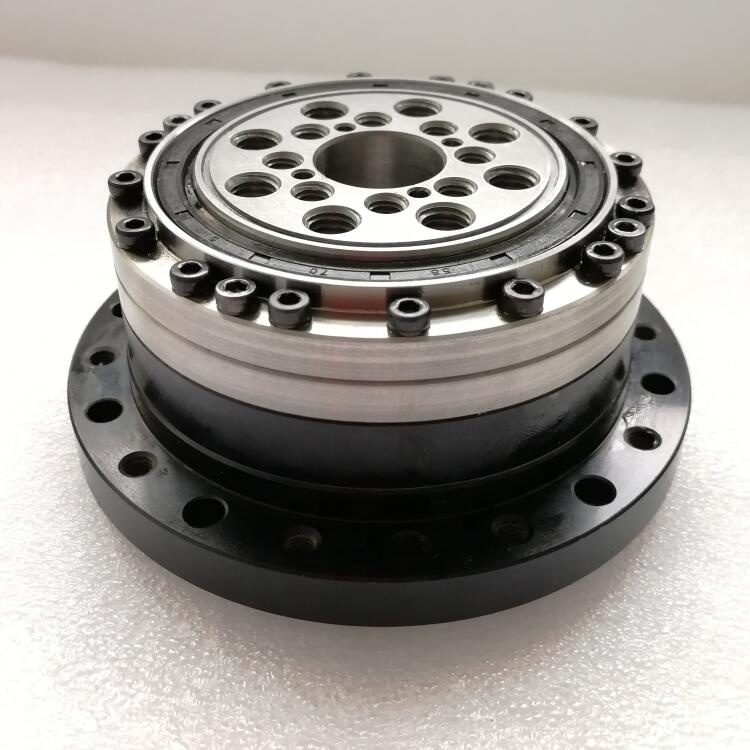

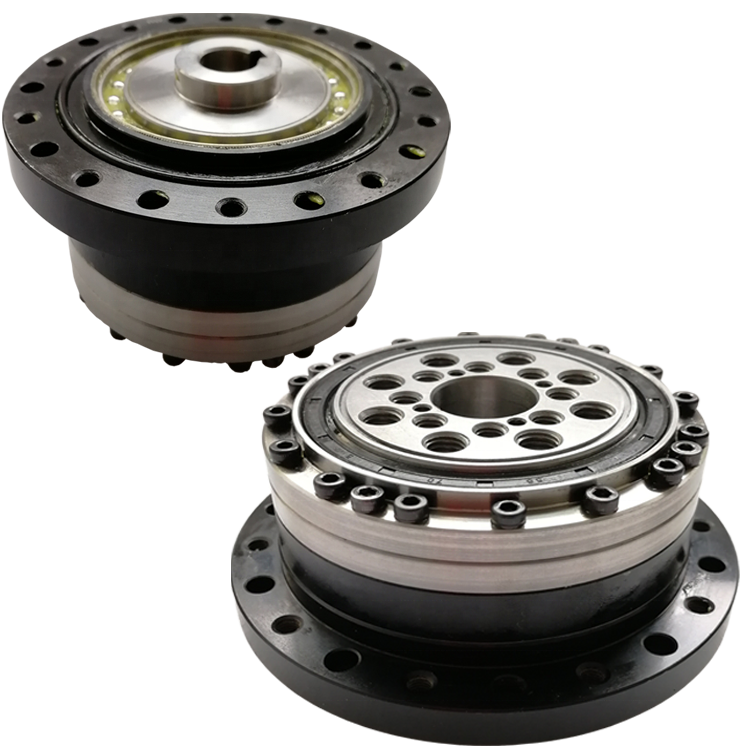

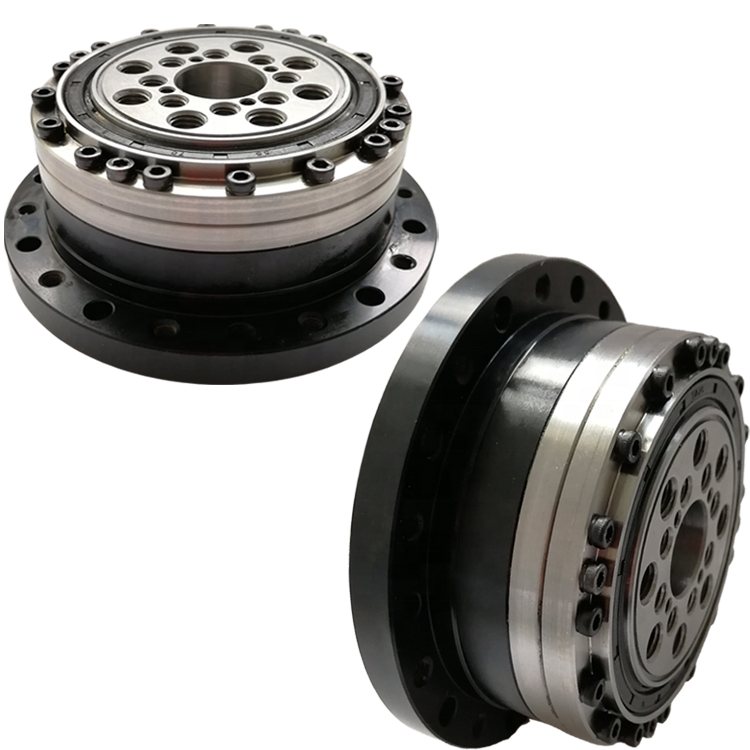

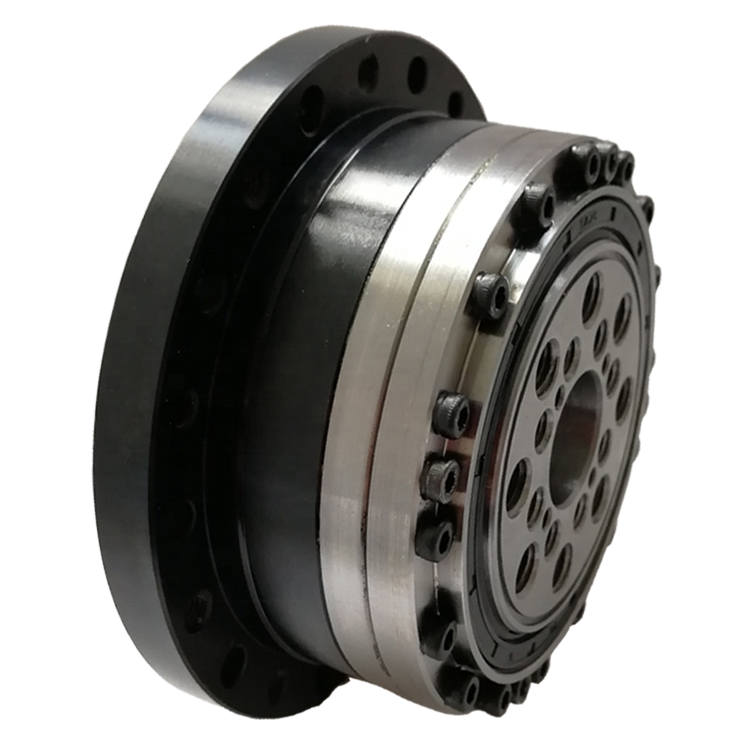

CSG/CSF-2UH series harmonic drive units are available in ten sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 3419 Nm.
The output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space saving designs. Standard servo motors can be attached in a compact manner. The harmonic drive gearboxes cover a wide torque range and feature long service life, confirmed by many years of successful service. Unit and motor together form a compact and lightweight system capable of quickly withstanding high loads. Due to the Units positioning accuracy, stable machine characteristics with short cycle times are guaranteed.
CSG & CSF combination harmonic gearboxes are mainly structured by component sets. The cross roller bearing inside the harmonic drive is with high precision and high rigidity, it is used for holding (main bearing) external loading.
CSG & CSF series combination harmonic gearbox can meet the request of high function, high speed, high load capacity, high density, subtle and accelerate the demand of the technical innovation, realize the rich product lineup, make the customer can according to their own situation to choose the best model.
Difference between CSG series and CSF series is that CSF series harmonic gearbox is with standard torque, while CSG series harmonic gearbox is with more higher torque and longer service time.
Features at a Glance
Excellent positioning accuracy
Input and output are coaxial
30% Higher torque (CSG series)
CSG harmonic reducer is used for high torque case, its torque is 30% higher than CSF reducer’s, also the life time is 43% longer (10,000 hours).
| Model | CSG/CSF-14, 17, 20, 25, 32, 40, 45, 50, 65 |
| Ratio | 50:1, 80:1, 100:1, 120:1, 160:1 |
| Backlash | Zero arcmin |
| Torque | 9-2041 Nm |
| Weight | 0.52-20.9 kg |
| Package | Carton or wood gearbox |
Frequently Asked Questions
What is the main difference between CSG and CSF series?
The CSF series is the standard torque version, while the CSG series offers 30% higher torque capacity and a 43% longer service life (up to 10,000 hours).
What reduction ratios are available for the CSG/CSF-2UH units?
These units are available in standard gear ratios of 50:1, 80:1, 100:1, 120:1, and 160:1.
Does this harmonic drive have any backlash?
No, the CSG/CSF series features zero backlash, ensuring extreme positioning and rotation accuracy.
Can these units handle high payloads directly?
Yes, the integrated output bearing has high tilting rigidity, which allows for the direct application of high payloads without the need for additional support bearings.
Are these units compatible with standard servo motors?
Absolutely. The design allows standard servo motors to be attached in a compact manner, creating a lightweight and efficient drive system.
What industries typically use these harmonic gearboxes?
They are widely used in robotics, precision automation, medical equipment, and any application requiring high torque density and high positioning accuracy.
