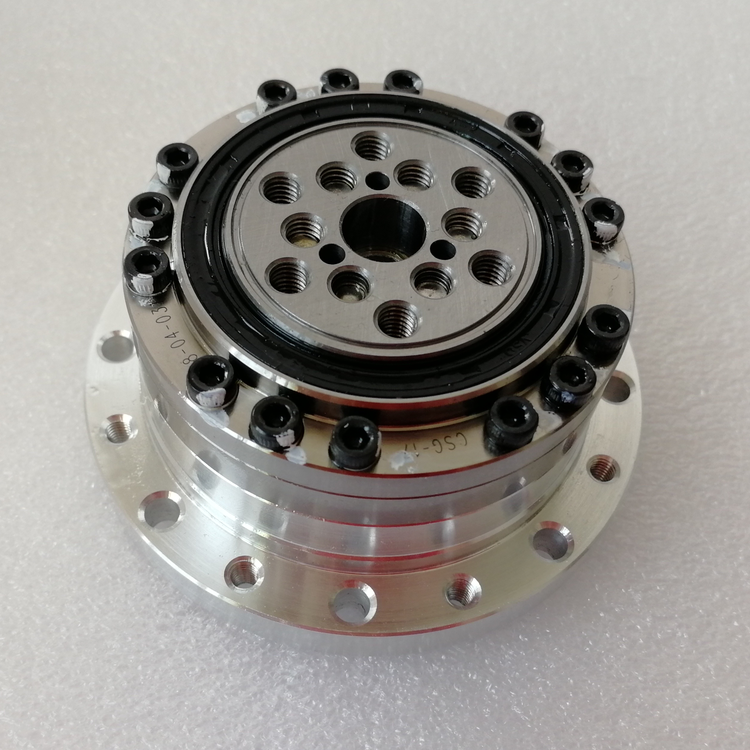

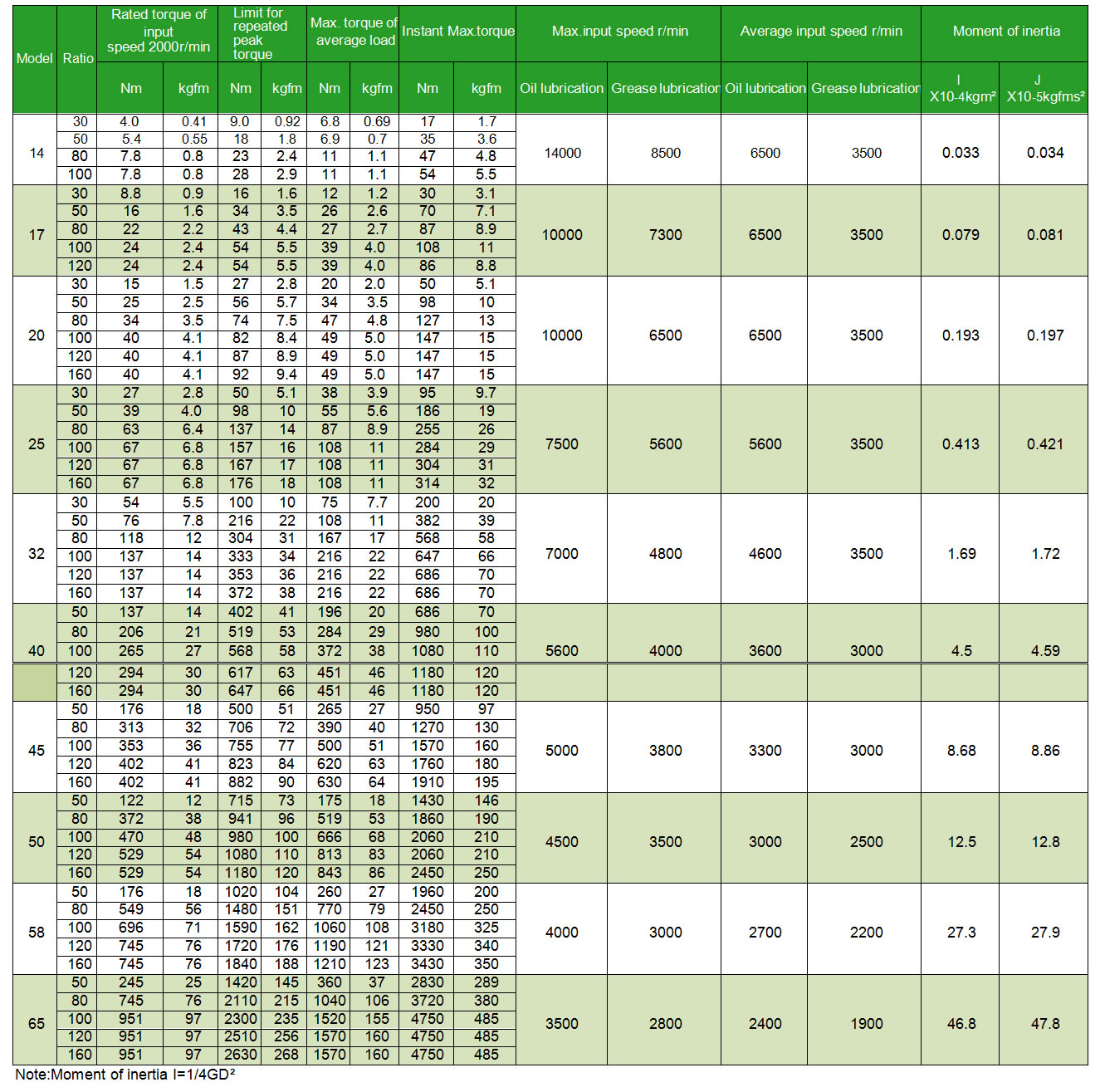

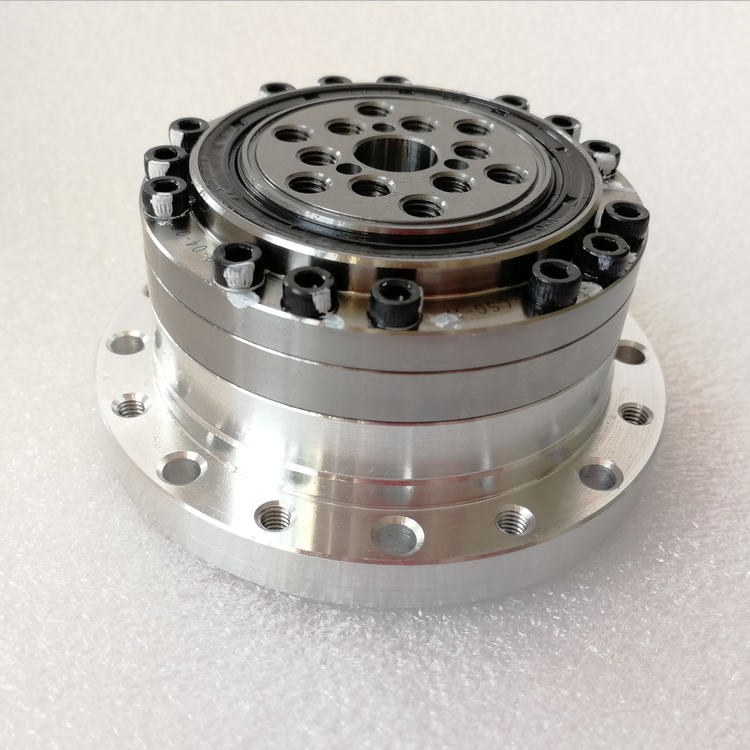

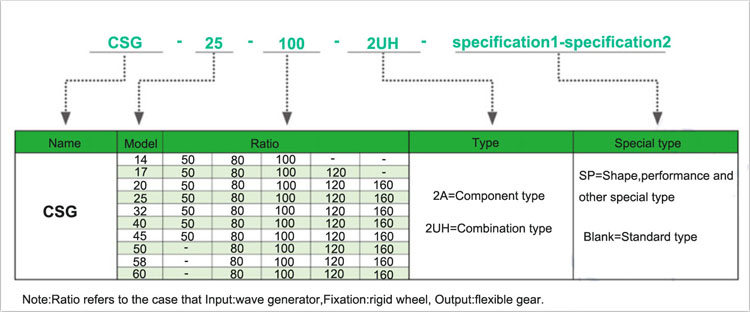

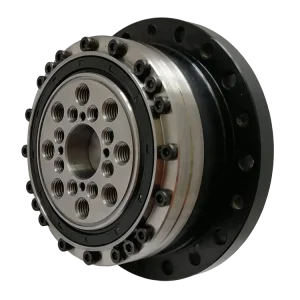

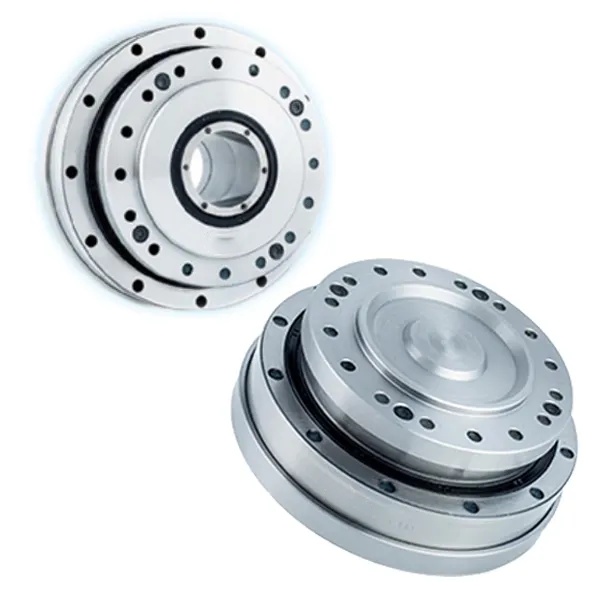

CSG harmonic reducer is designed for high torque applications. Its torque capacity is 30% higher than the CSF series, and the service life is extended by 43% (up to 10,000 hours). These units are available in ten sizes with gear ratios of 50, 80, 100, 120, and 160:1, offering repeatable peak torques from 23 to 3419 Nm.

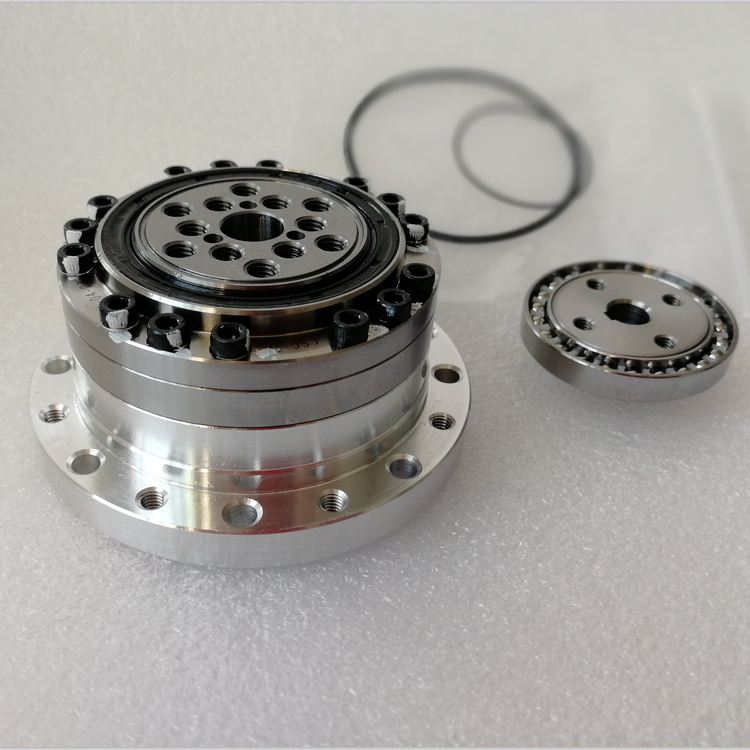

The output bearing features high tilting rigidity, allowing direct introduction of high payloads without additional support. This permits simple, space-saving designs where standard servo motors can be attached compactly.
| Type | CSG Harmonic Drive Gearbox |
| Color | Silver |
| Packing | Carton, Honey Comb Carton, Wooden Case with wooden pallet |
| Warranty | 1 Year |
| Input Power | 0.05kw to 15kw (multiple options) |
| Usages | Food Stuff, Ceramics, Chemical, Packaging, Woodworking, Glass, New Energy, Industrial Automation |
| Lubricant | Special gear oil |
