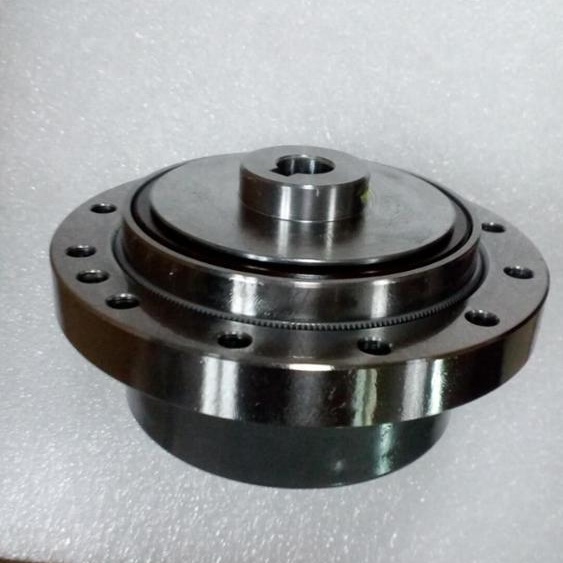

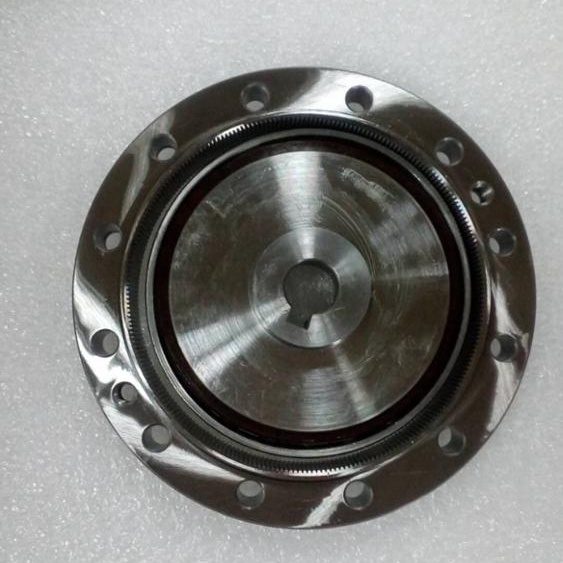

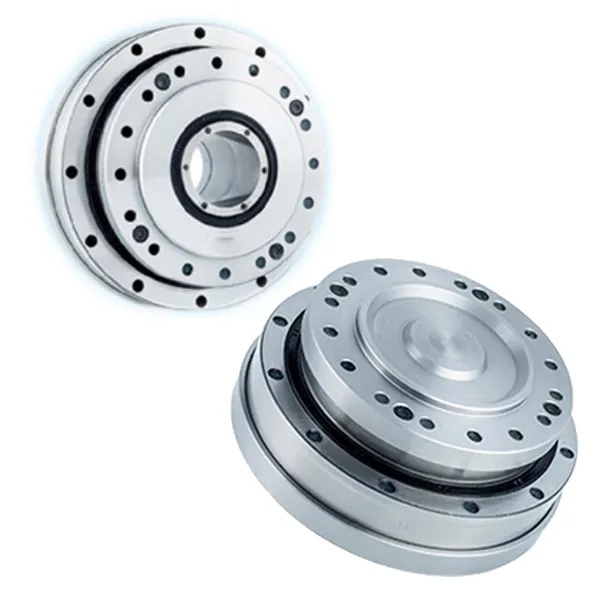

TQG High Rigidity Zero Backlash Gearbox Reducer CSF 14 Harmonic Drive Gear for Robot Arm Joint

Send Inquiry

Product Description

⚙️ Product Description

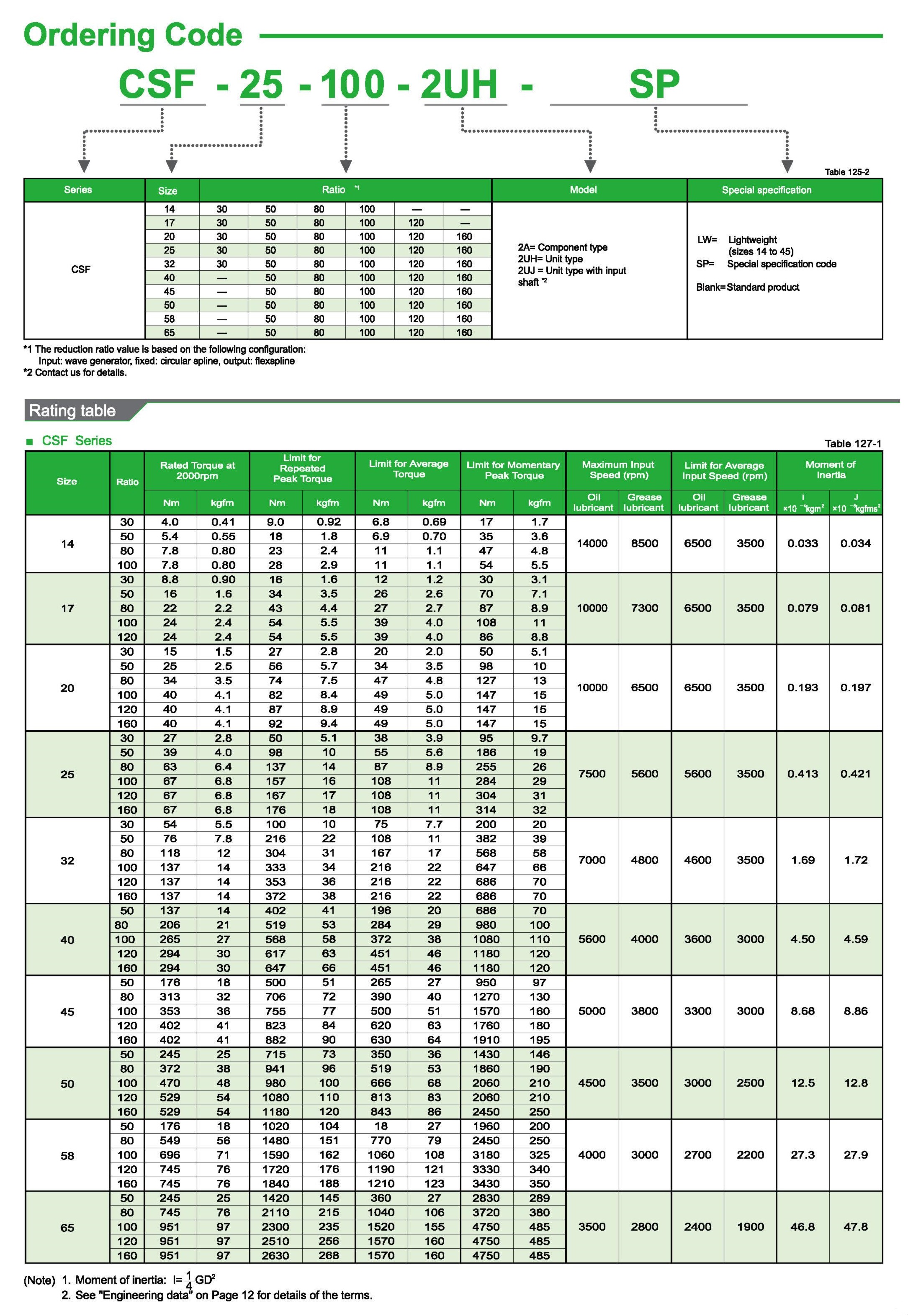

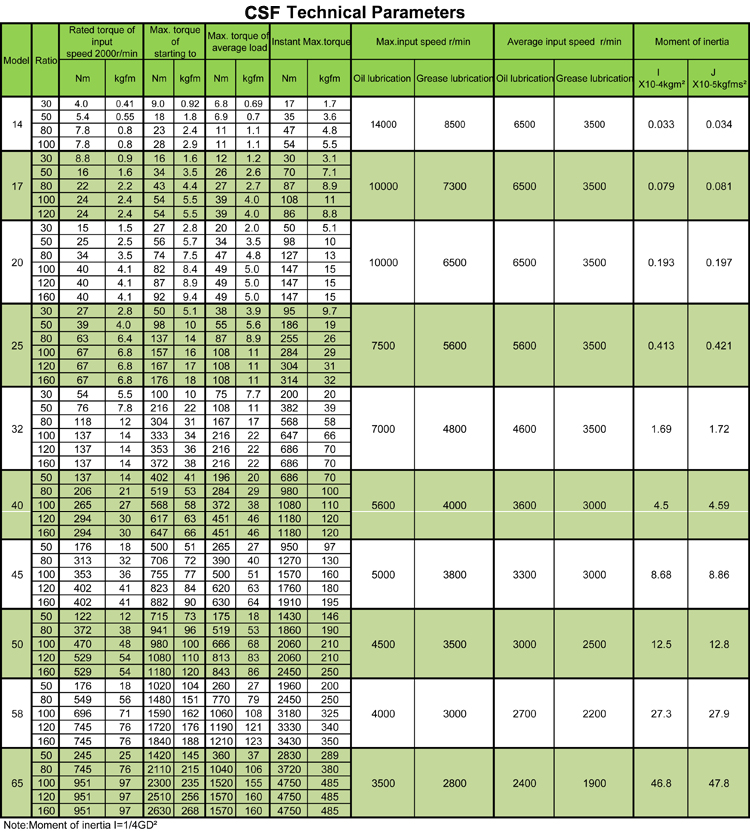

Model	CSG/CSF-14, CSG/CSF-17, CSG/CSF-20, CSG/CSF-25, CSG/CSF-32, CSG/CSF-40, CSG/CSF-45, CSG/CSF-50, CSG/CSF-65
Ratio	50:1, 80:1, 100:1, 120:1, 160:1
Backlash	Zero arcmin
Torque	9-2041Nm
Weight	0.52-20.9kg
Package	Carton or wood gearbox

🛠️ Related Components

🏭 Company Profile & Factory

📜 Certificates & Feedback

📦 Logistics and Payment

❓ FAQ

What are the main advantages of CSG/CSF series harmonic drives?

The CSG/CSF series offers zero backlash, high torque density, and exceptional positioning accuracy in a compact, lightweight design.

What reduction ratios are available for these gearboxes?

Standard available ratios include 50:1, 80:1, 100:1, 120:1, and 160:1 to meet various speed and torque requirements.

Are these gearboxes compatible with standard servo motors?

Yes, our harmonic drives are designed for easy integration with most major brands of stepper and servo motors.

What is meant by "zero arcmin" backlash?

Zero arcmin indicates that there is virtually no lost motion during direction changes, ensuring extreme precision in robotic and CNC applications.

How is the product packaged for international shipping?

Depending on the size and weight, gearboxes are packed in high-strength cartons or reinforced wooden cases to ensure safe delivery.

Which industries typically use these harmonic reducers?

They are widely used in industrial robotics, aerospace equipment, medical devices, semiconductor manufacturing, and precision automation.
