Product Description
- Compact design
- High torque capacity
- Zero backlash
- Excellent positioning accuracy and rotation accuracy
- Coaxial input and output
- High torque performance (30% higher torque and 43% longer life than CSF series)

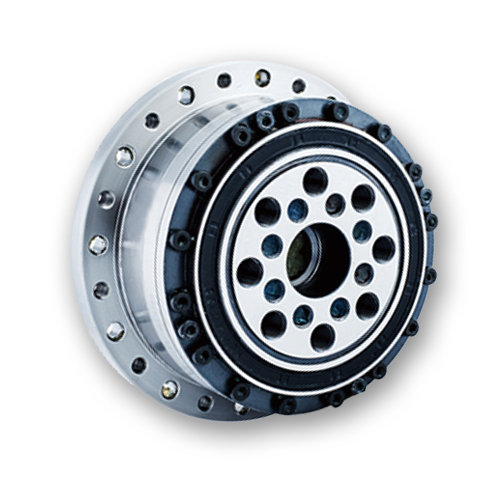

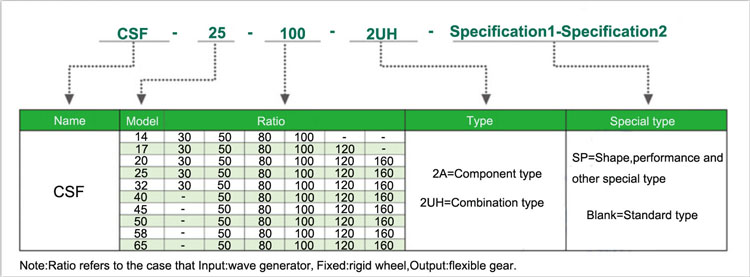

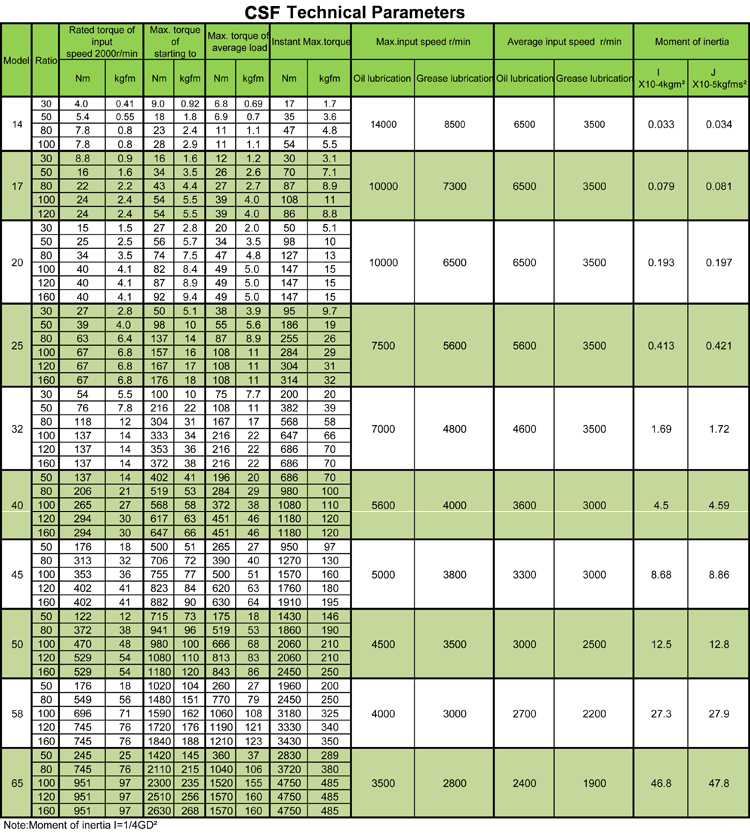

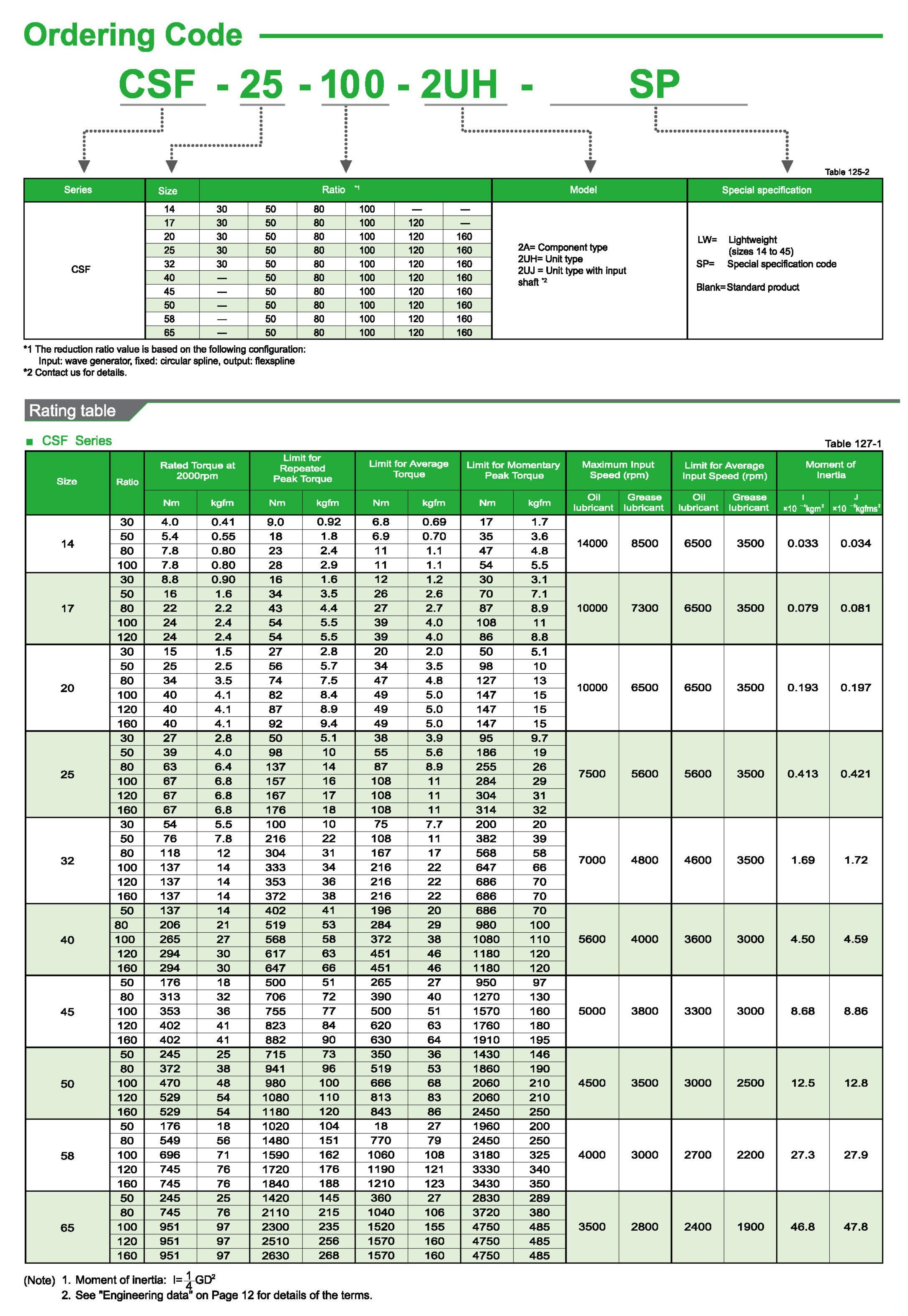

CSG/CSF-2UH series harmonic drive units are available in ten sizes with gear ratios of 50, 80, 100, 120 and 160:1 offering repeatable peak torques from 23 to 3419 Nm. The output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space saving designs.
Standard servo motors can be attached in a compact manner. The harmonic drive gearboxes cover a wide torque range and feature long service life, confirmed by many years of successful service. Unit and motor together form a compact and lightweight system capable of quickly withstanding high loads. Due to the Units positioning accuracy, stable machine characteristics with short cycle times are guaranteed.

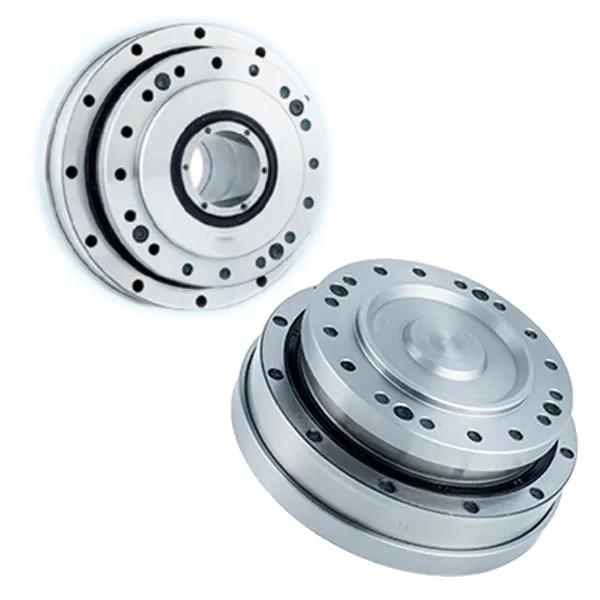

CSG & CSF combination harmonic gearboxes are mainly structured by component sets. The cross roller bearing inside the harmonic drive is with high precision and high rigidity, it is used for holding (main bearing) external loading. CSG series harmonic gearbox is designed for higher torque requirements and longer service time compared to the standard CSF series.
| Type |
CSG Harmonic Drive Gearbox |
| Color |
Silver |
| Packing |
Carton, Honey Comb Carton, Wooden Case with wooden pallet |
| Warranty |
1 Year |
| Input Power |
0.05kw to 15kw (Various ranges) |
| Usages |
Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Wood working, Glass, New energy, Heavy industry equipment, Industrial automation |
| Lubricant |
Special gear oil |
Visual Showcase
Frequently Asked Questions
Are you a manufacturer or trader?
We are a manufacturer. You are sincerely welcome to visit our facilities or arrange a video conference at your convenience.
What are your main products?
We currently supply planetary gearboxes, harmonic gearboxes, steering gearboxes, RV cycloidal pin-wheel gearboxes, worm gearboxes, servo motors, stepper motors, electric cylinders, slides, and couplings.
How do I select a suitable gearbox?
Please provide your motor details or drawings along with working conditions, load, output torque, speed/reduction ratio, and backlash requirements. We will guide you through the selection process step-by-step.
Can I get 3D and 2D drawings?
Yes, we provide standard drawings. The input size of the gearbox can also be customized to match different motor specifications.
Do you offer individual design services?
Yes, we can design products individually for our customers, although this may involve mold development and design charges.
What is your lead time?
We maintain stock for many standard products. If out of stock, it typically takes 15-20 days. Customized products may require more time depending on the specific order.
