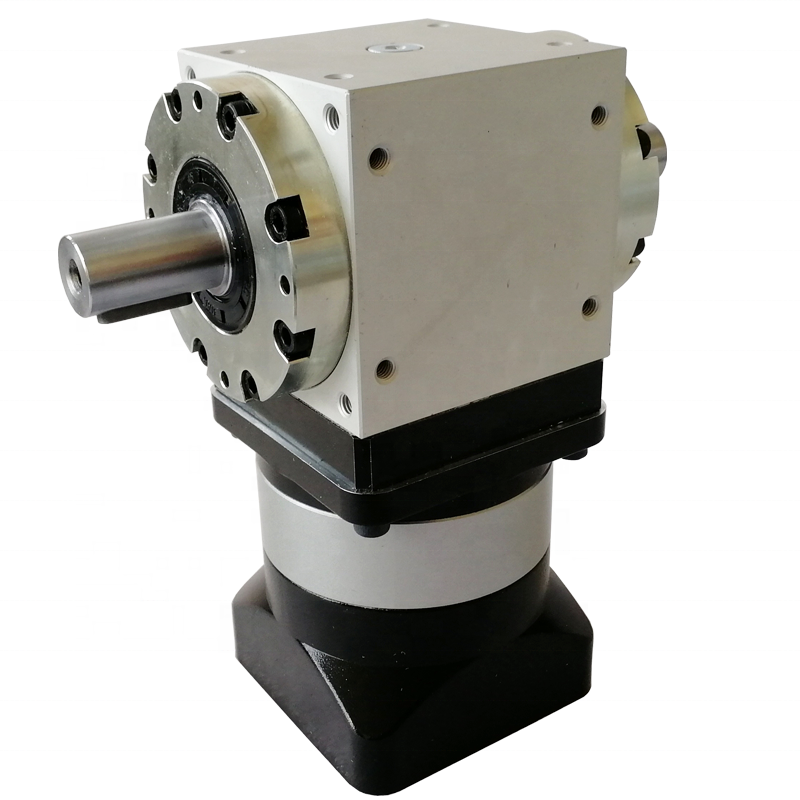

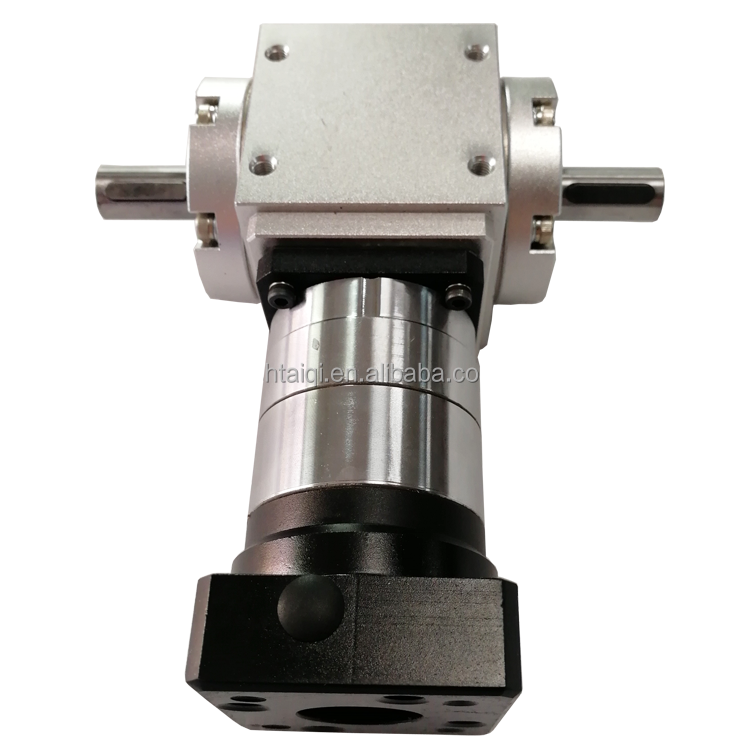

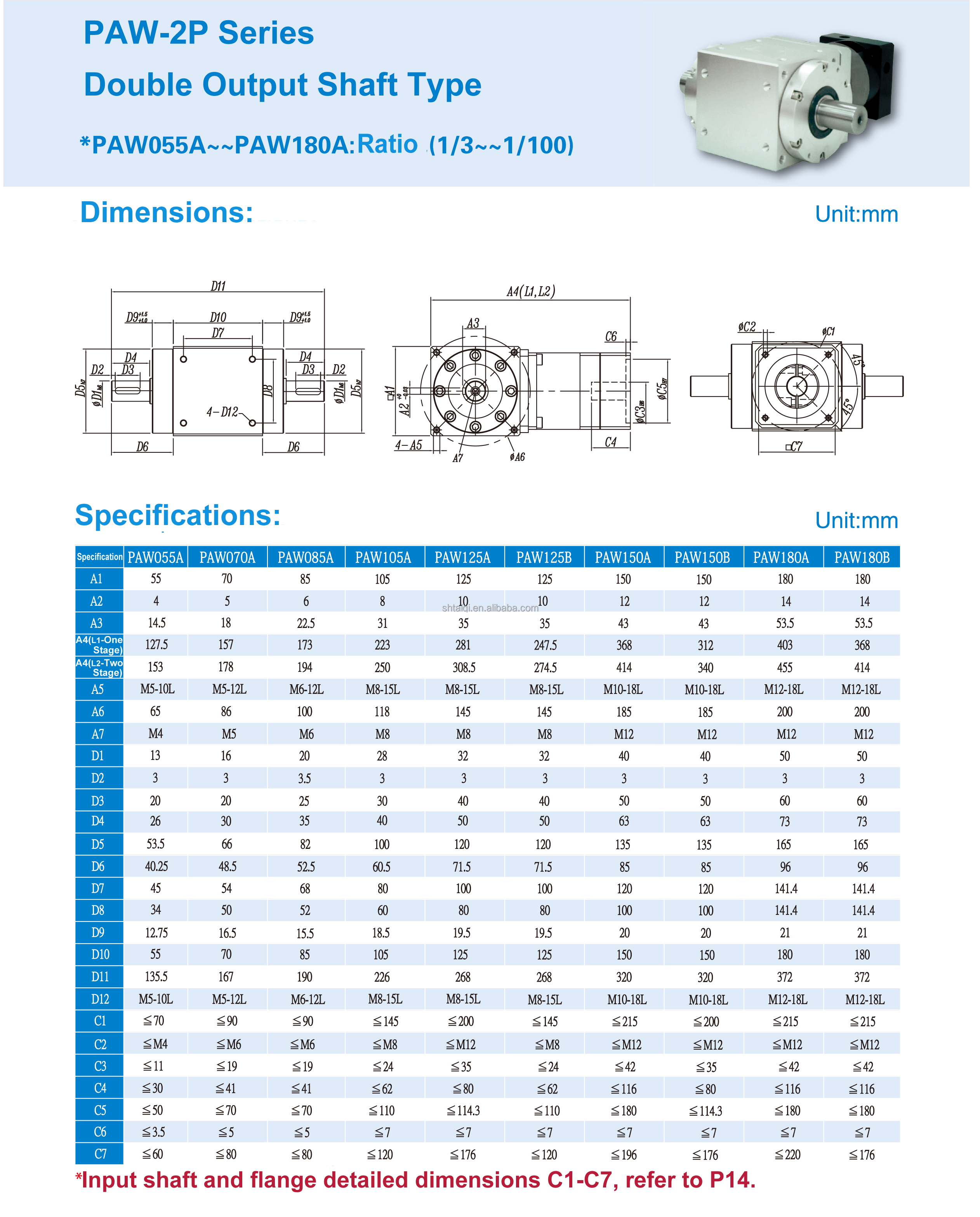

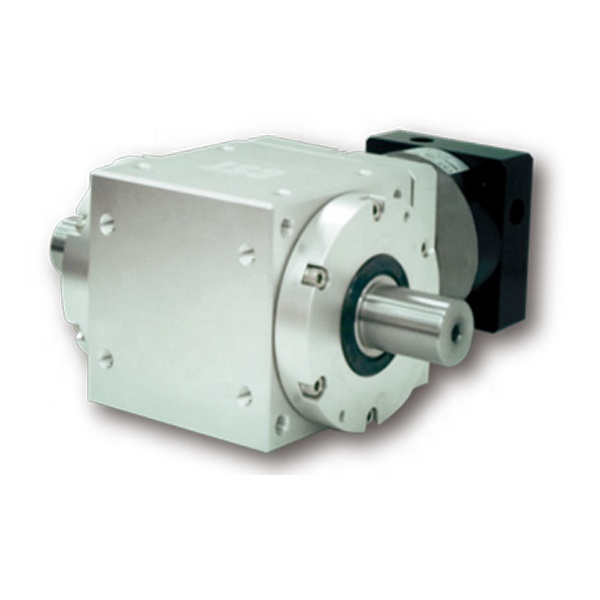

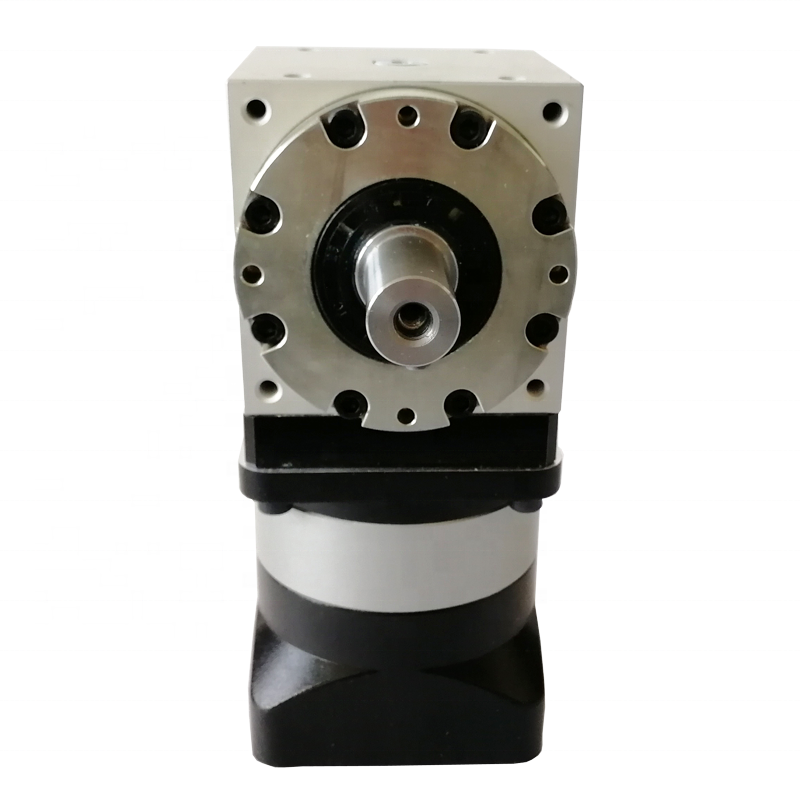

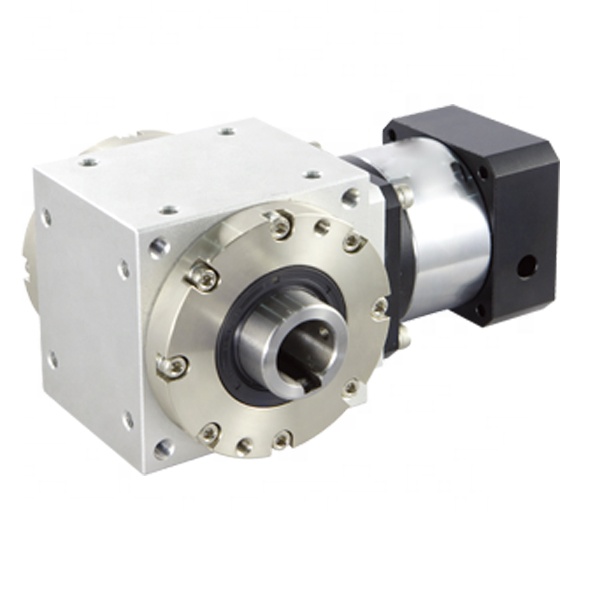

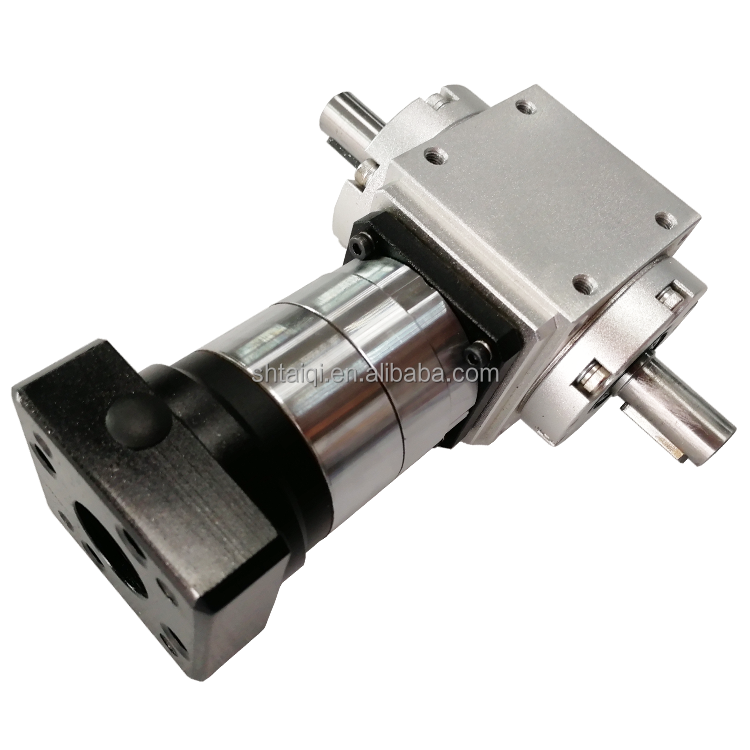

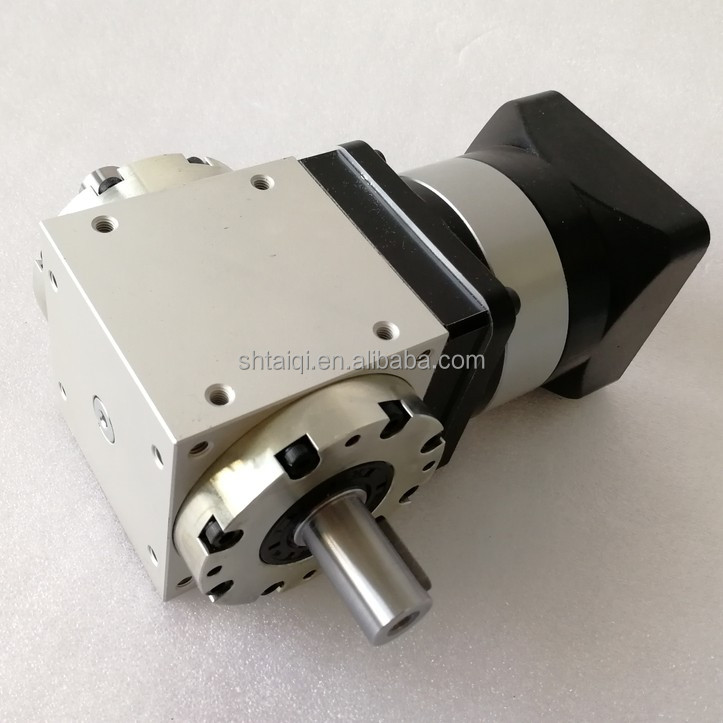

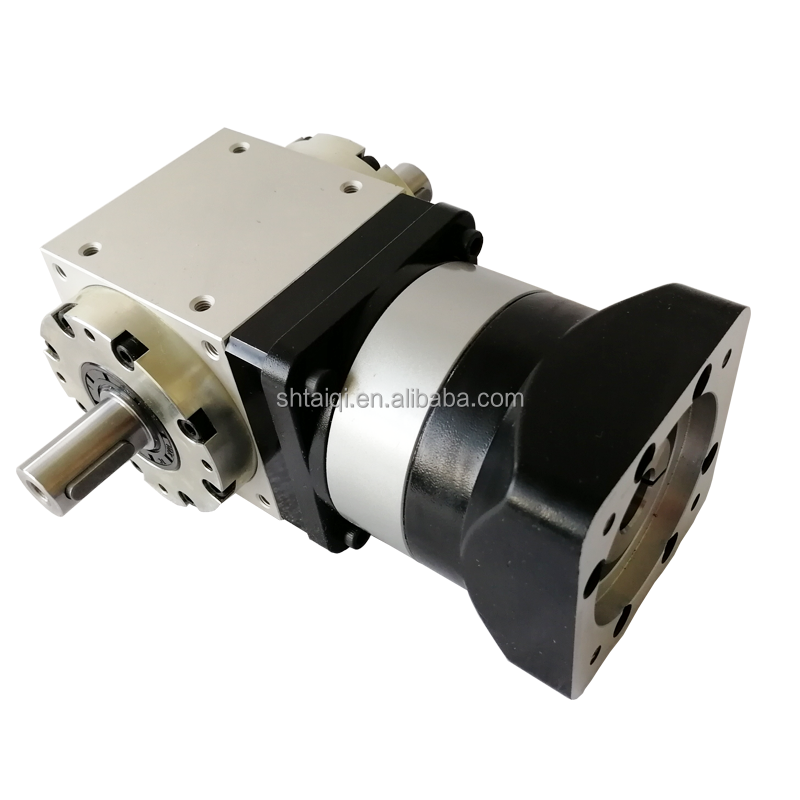

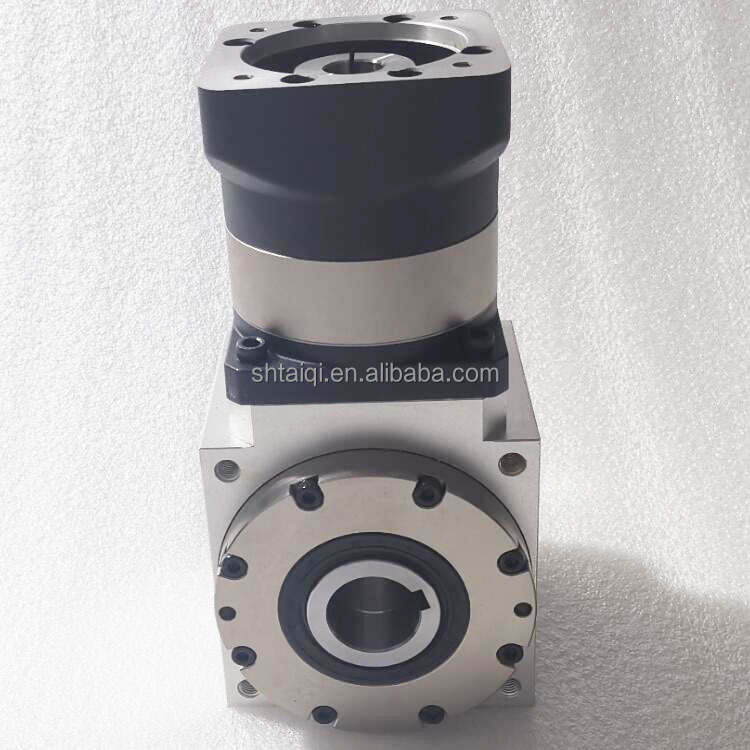

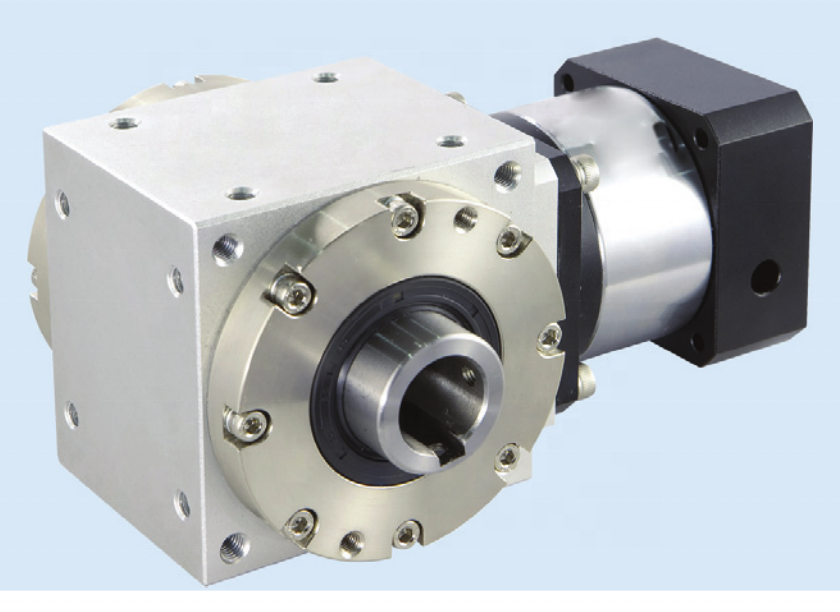

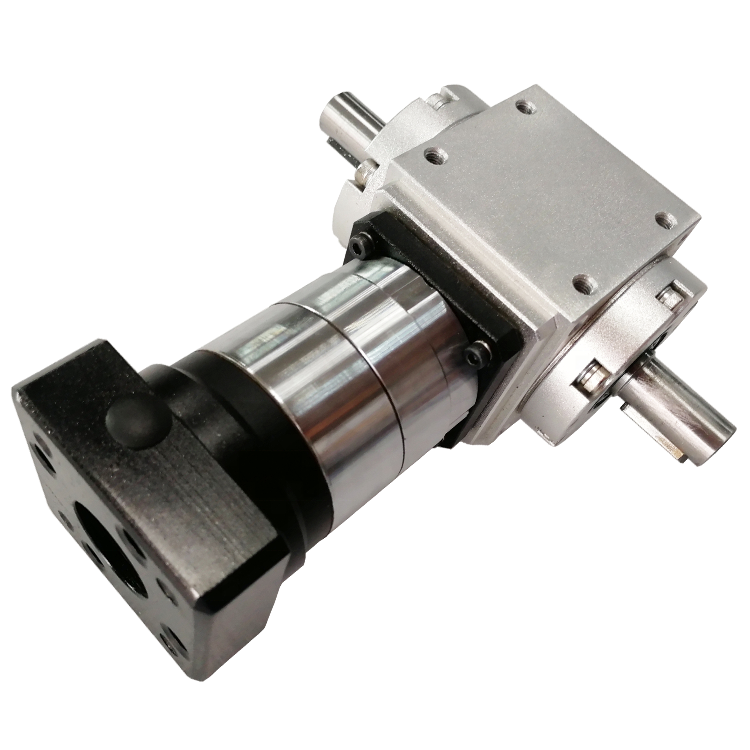

PAW-2P is the right angle gearbox with two output shaft,consisted of high efficiency spiral bevel gears and planetary part with spur gears,so it is also called spiral bevel planetary gearbox. The spiral bevel gears of PAW-2P right angle gearbox are made of high stretch SCM415 material and tooth hardness HRC60°~ HRC62°.Such excellent structure features PAW-2P with high strength and high rigidity and best for heavy loading change.
PAW-2P 90 degree right angle gearbox is with motor adapter on the input side,makes motor easily mount the gearbox.The planetary frame and 90 degree structure make the gearbox compact and perfectly applied to the transmission mechanism that need to change the motion direction with limited space. PAW-2P right angle gearbox generates low heat and low noise when rotating.This allows a continuous high speed without sacrifice to performance and favored by a majority of users.
The 90 degree gearbox has a wide range of nominal torques 10Nm~1200Nm,suitable for different loads of the transmission system.
PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B
Widely used in: Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine (vertical pillow), Packing machine (horizontal pillow), Dispenser Robot, Loader robot and some other heavy load case.

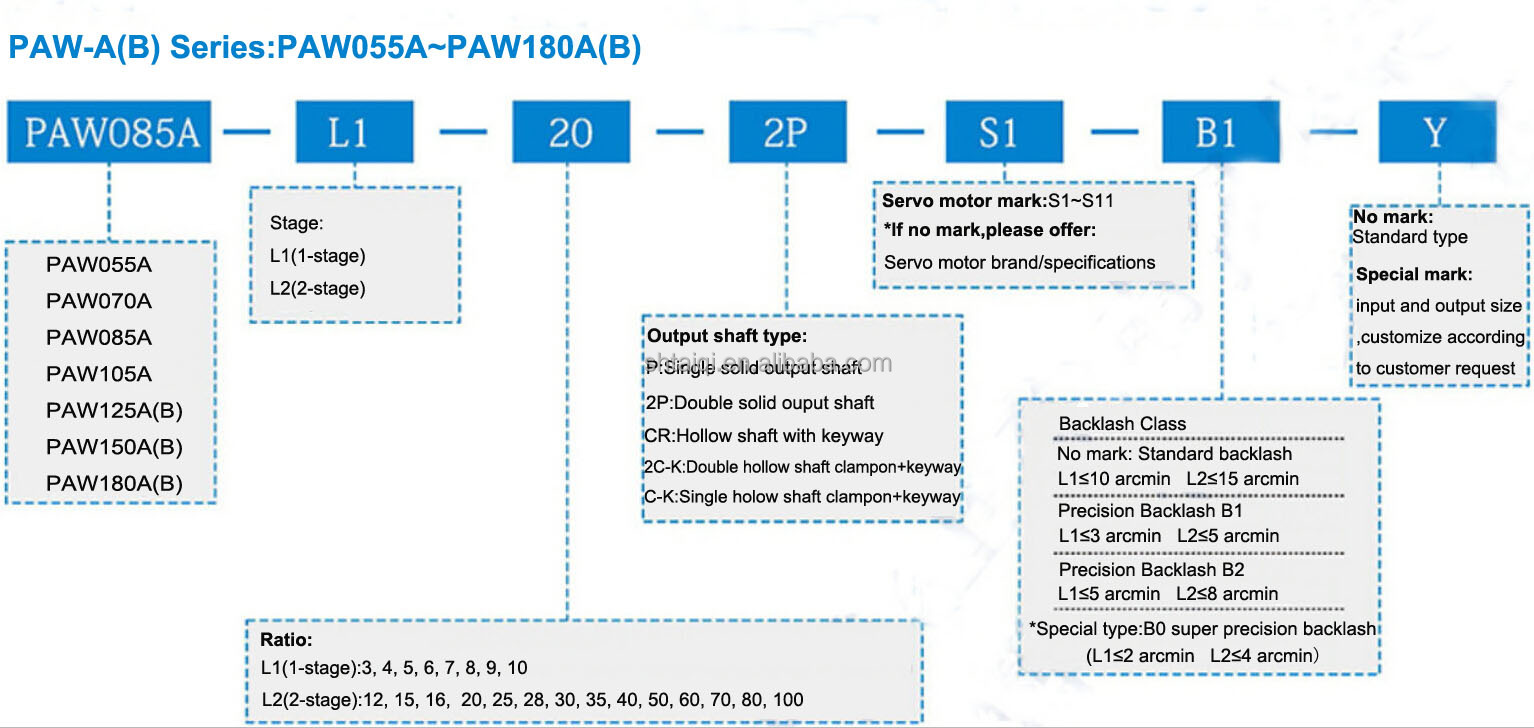

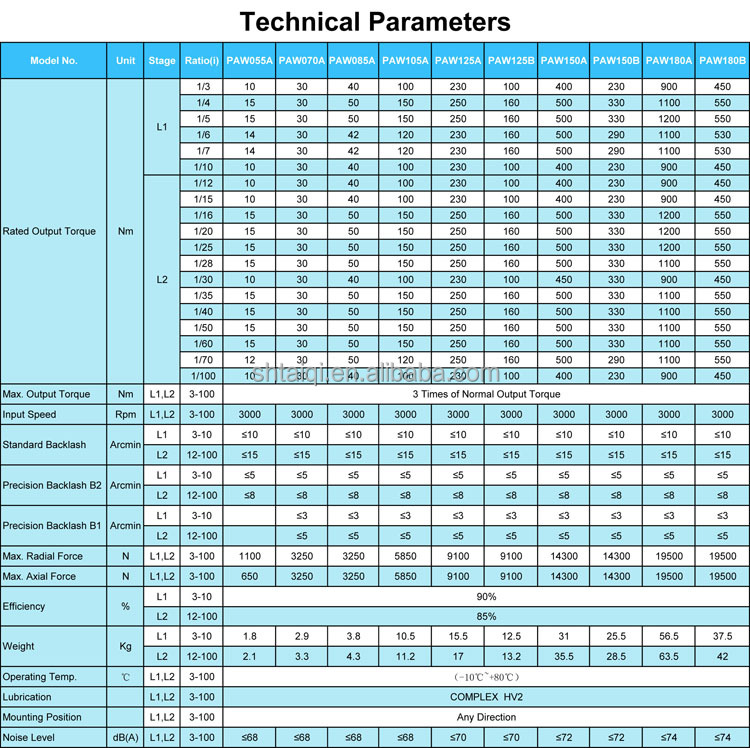

| Model | PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B |
| Ratio | 1:1-100:1 |
| Backlash | ≥3arcmin,<=15arcmin |
| Torque | 10Nm-1200Nm |
| Weight | 1.8kg-42kg |
| Package | Carton or wood gearbox |
The PAW-2P is a right angle gearbox featuring two output shafts. It consists of high-efficiency spiral bevel gears combined with a planetary system using spur gears, which makes it commonly referred to as a spiral bevel planetary gearbox.
The spiral bevel gears are manufactured from high-stretch SCM415 material. The tooth surface undergoes hardening to reach a hardness level of HRC60° to HRC62°, providing exceptional strength, rigidity, and resistance to heavy loads.
The PAW-2P series supports three classifications of backlash depending on your precision needs: Standard backlash (10 to 15 arcmin), Precision backlash B2 (5 to 8 arcmin), and Super Precision backlash B1 (3 to 5 arcmin).
Yes. The internal design of the planetary frame and spiral bevel structure minimizes friction, resulting in low heat generation and low operational noise. This ensures reliable continuous high-speed rotation.
Absolutely. The input side of the PAW-2P 90-degree right angle gearbox is designed with a standard motor adapter plate, allowing users to mount their matching motor quickly and accurately.
The gearbox provides nominal torque capabilities between 10Nm to 1200Nm. Ratios range from 3:1 to 10:1 for single-stage setups, and from 12:1 up to 100:1 for two-stage configurations, catering to diverse speed and transmission demands.
