Product Description

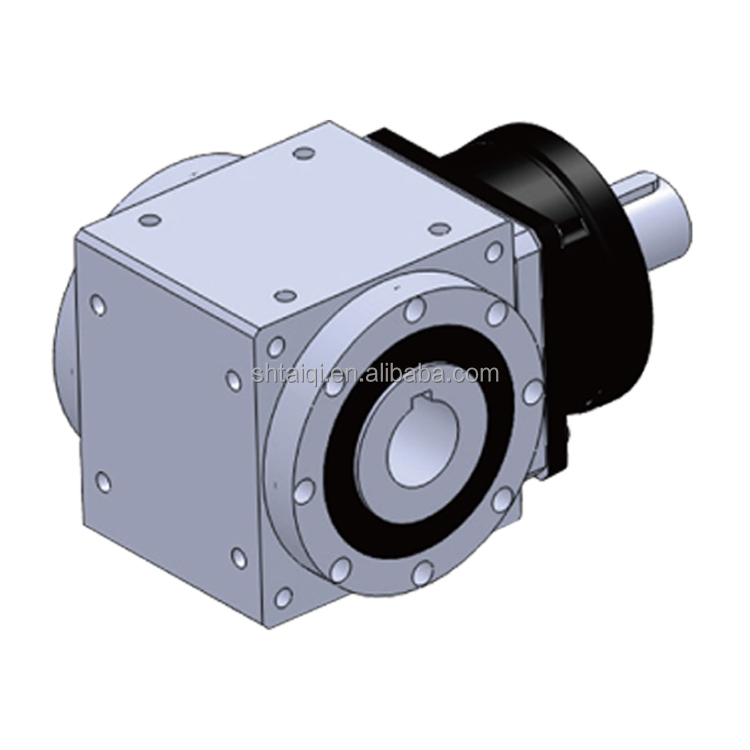

PT-CR Hollow Shaft Steering Gearbox with Keyway Spiral Bevel Right Angle Gearbox
PT-CR steering gearbox is with hollow output shaft and solid input shaft. The Hollow output design allows the axis to go through the hollow shaft directly without any installation accessories.
The gear adopts high strength SCM415 material with tooth surface hardness of HRC60° ~ HRC62°, which makes the 90 degree gearbox rotate smoothly with low noise. The 90 degree servo gear box has excellent rigid structure for the output loading changes especially for big occasions.
PT-CR right angle gear box has multiple designs that earned patents across countries. PT-CR steering gearbox has six frame types: PT070A, PT085A, PT105A, PT125B, PT150B, PT180B. The ratio is 1:1, suitable for the transmission mechanism that requires to change the motion direction with the same speed.
Widely used in: Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine (vertical pillow), Packing machine (horizontal pillow), Dispenser Robot, Loader robot etc.
Product Details
| Type |
PT-CR Hollow Shaft Steering Gearbox |
| Color |
Silver and Black |
| Packing |
Carton, Honey Comb Carton, Wooden Case with wooden pallet |
| Warranty |
1 Year |
| Input Power |
0.05kw, 0.1kw, 0.2kw, 0.4kw, 0.75kw, 2kw, 2.5kw, 5kw, 11kw, 15kw |
| Usages |
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Wood working, Glass, New energy, mine, machine, Heavy industry equipment, Industrial automation |
| Lubricant |
Special gear oil |
Manufacturer Profile

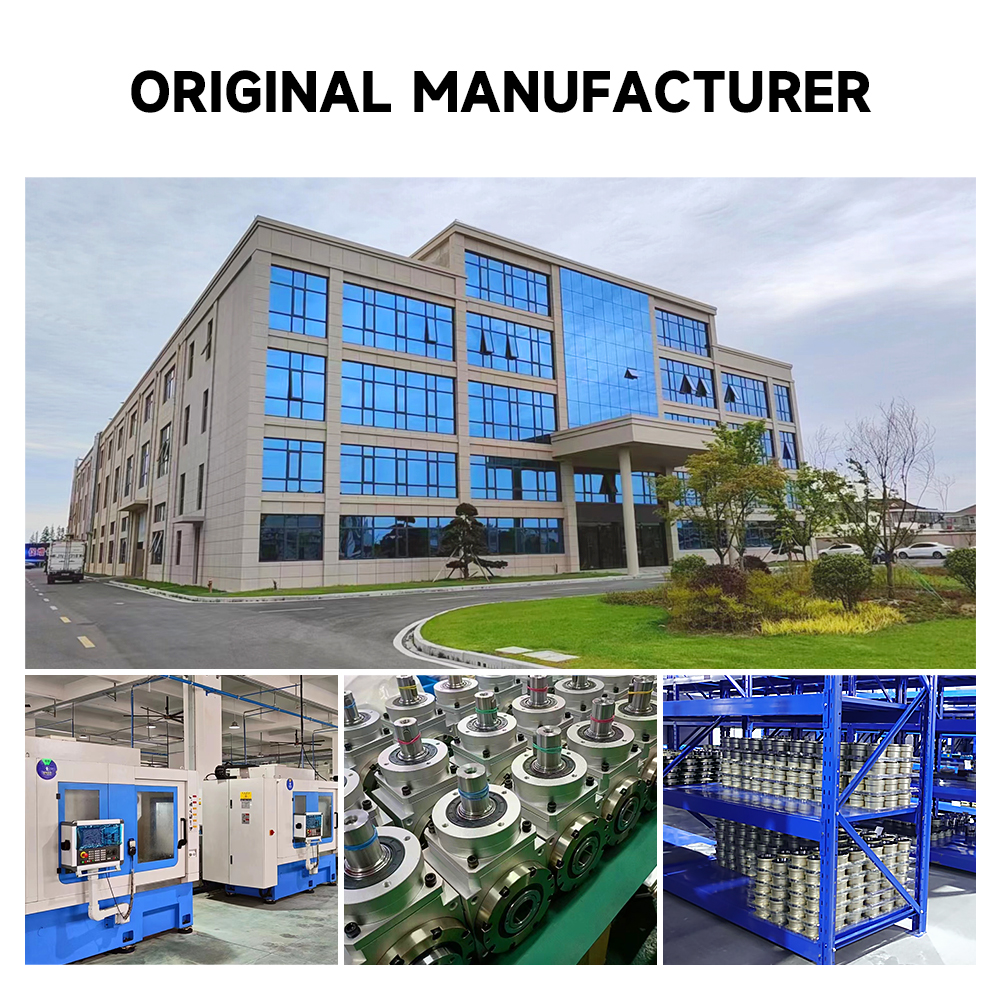

Our Factory
Certificate
Customer Feedback
Logistics and Payment
FAQ
Are you a manufacturer or trader?
We are a manufacturer. Sincerely welcome to visit our facility. We can also arrange a video conference first if that is more convenient for you.
What are your main products?
We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor, stepper motor, electric cylinder, slide, and coupling. An e-catalog is available upon request if you are interested.
How do I select a suitable gearbox?
Please provide your motor details or drawings along with working conditions, load, output torque, output speed or reduction ratio, and backlash. We will recommend the most suitable model. If you cannot provide all parameters, contact us and we will guide you step by step.
Can I get 3D and 2D drawings?
Yes, we provide standard drawings. The input size of the gearbox can also be customized according to different motor configurations.
Do you have an individual design service?
Yes, we offer custom product design for our customers. Please note that this may require some mold development cost and design charges.
What is your lead time?
Generally, we maintain stock for regular standard products. If a product is out of stock, it will take 15-20 days (slightly longer for customized products). We are highly flexible with lead times depending on the specific order details.
