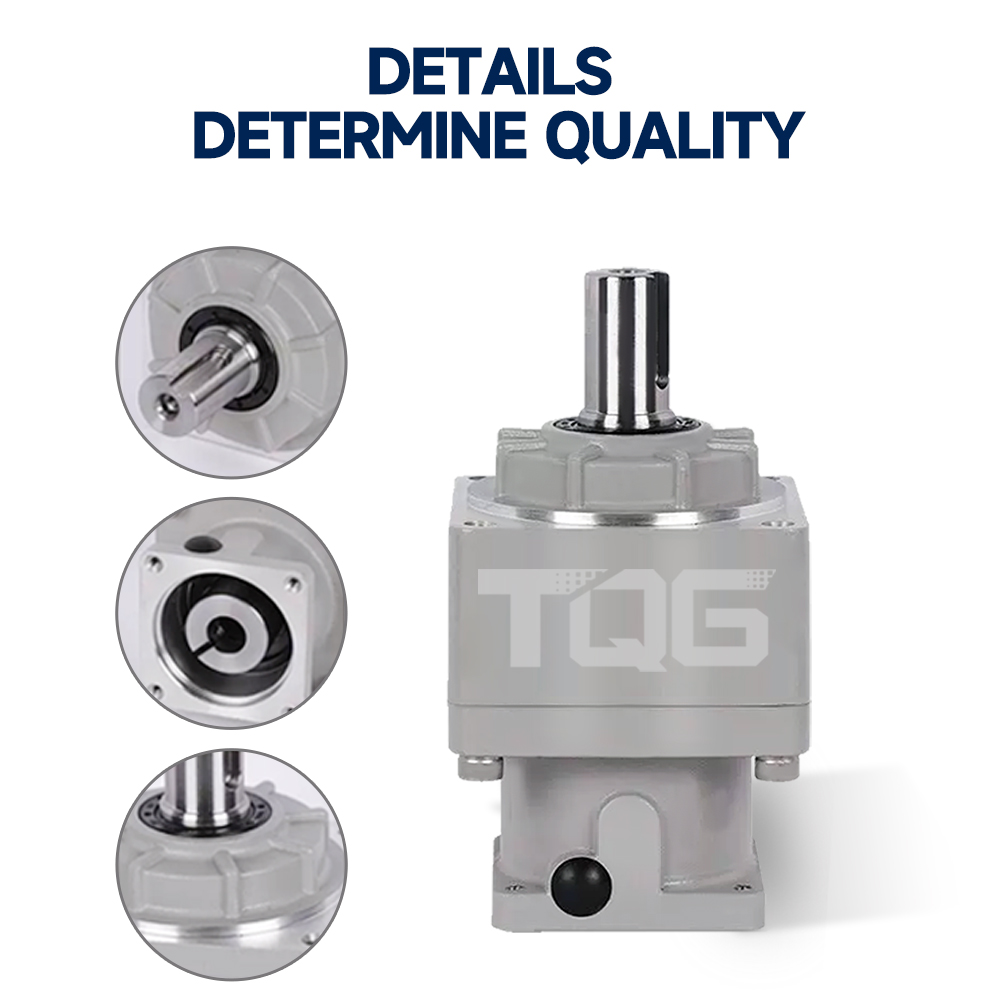

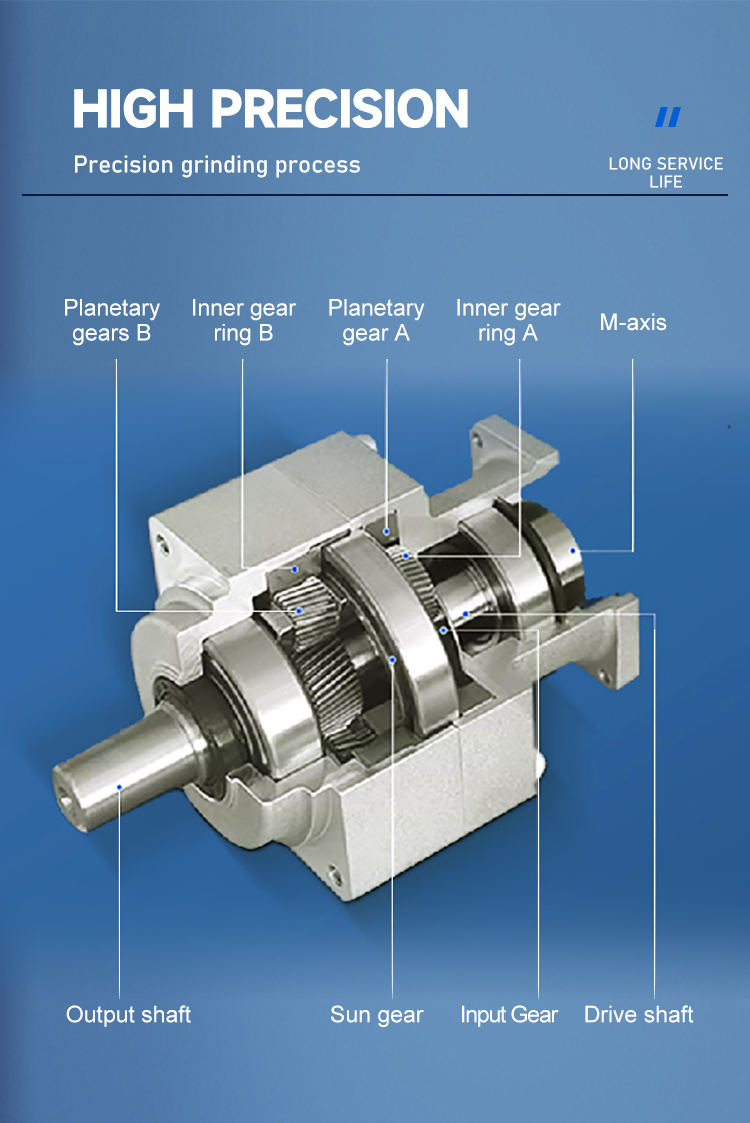

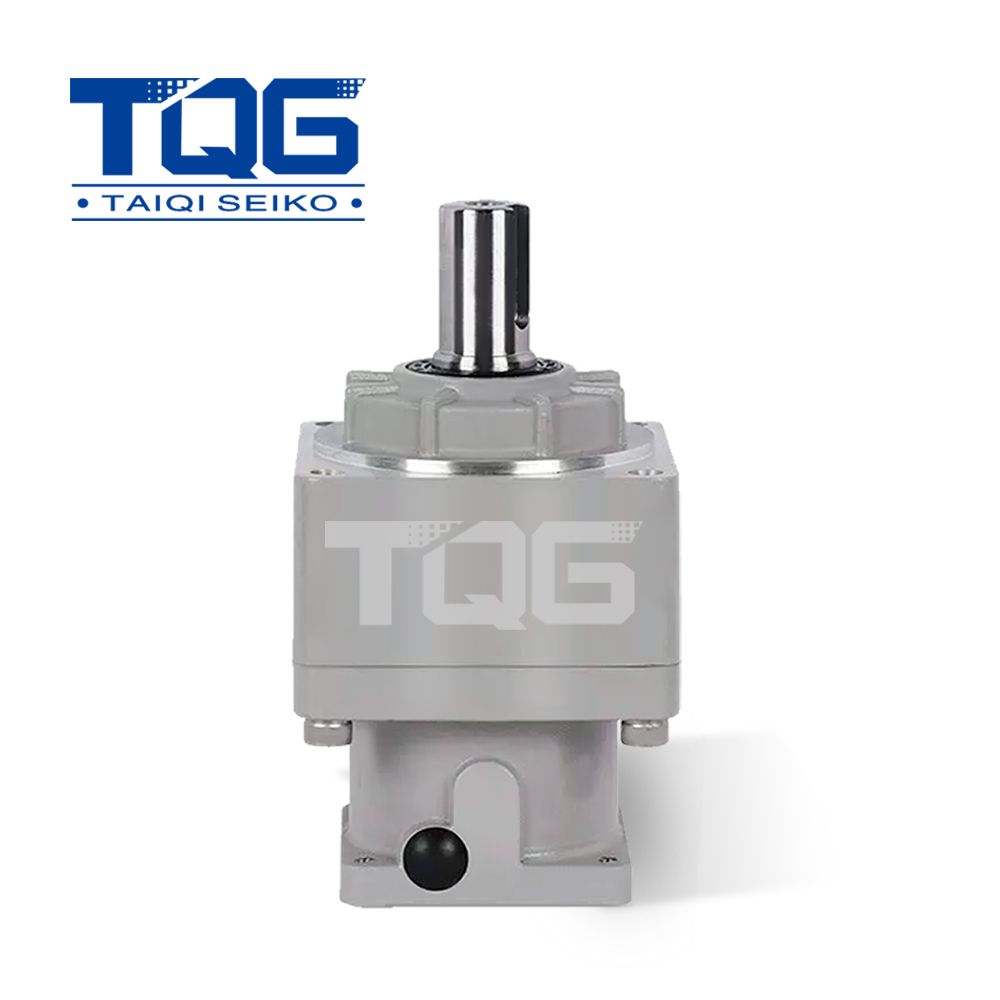

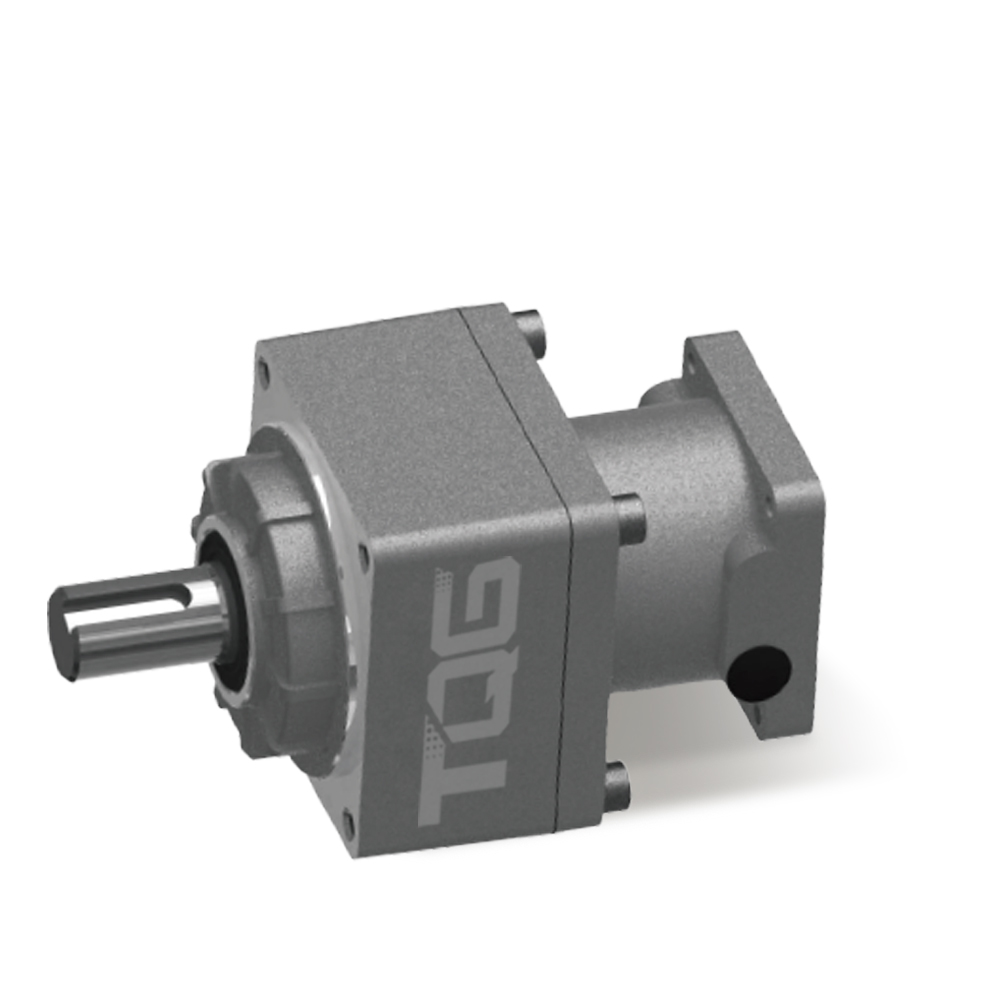

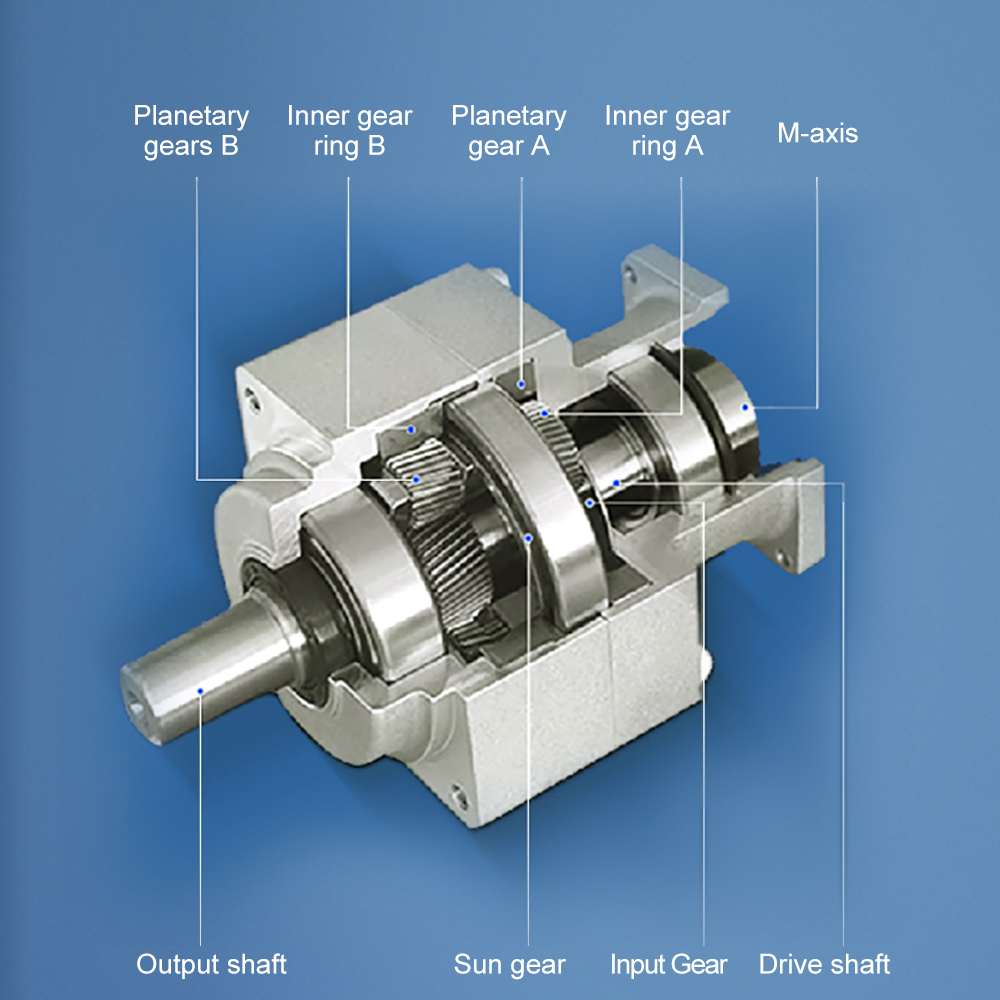

This precision reducer boasts a compact planetary gear design, ensuring exceptional torque density and efficiency. Its hardened and ground gears provide outstanding durability and smooth, quiet operation. The high-rigidity output shaft offers excellent stability under heavy radial and axial loads. With high precision, low backlash, and a long service life, it guarantees reliable power transmission and minimal maintenance.
The VRSF Reducer is the ideal drive core for various automation and machinery systems. It is perfectly suited for:

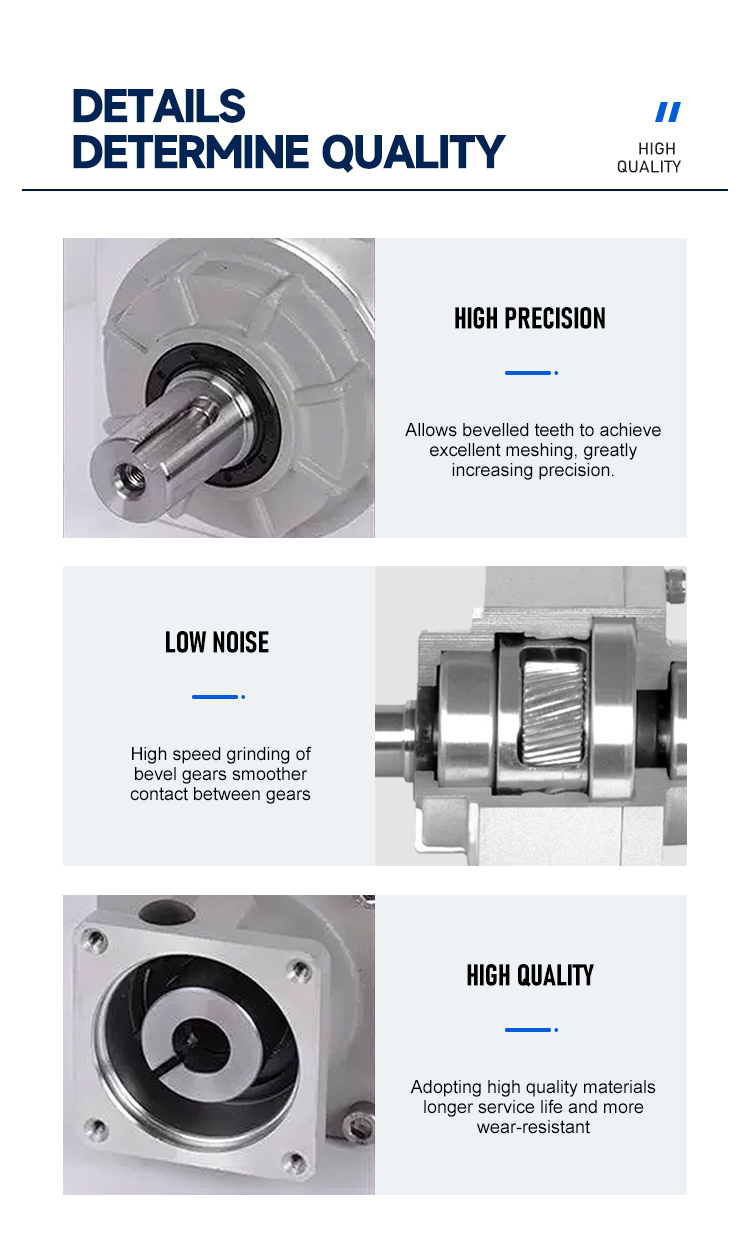

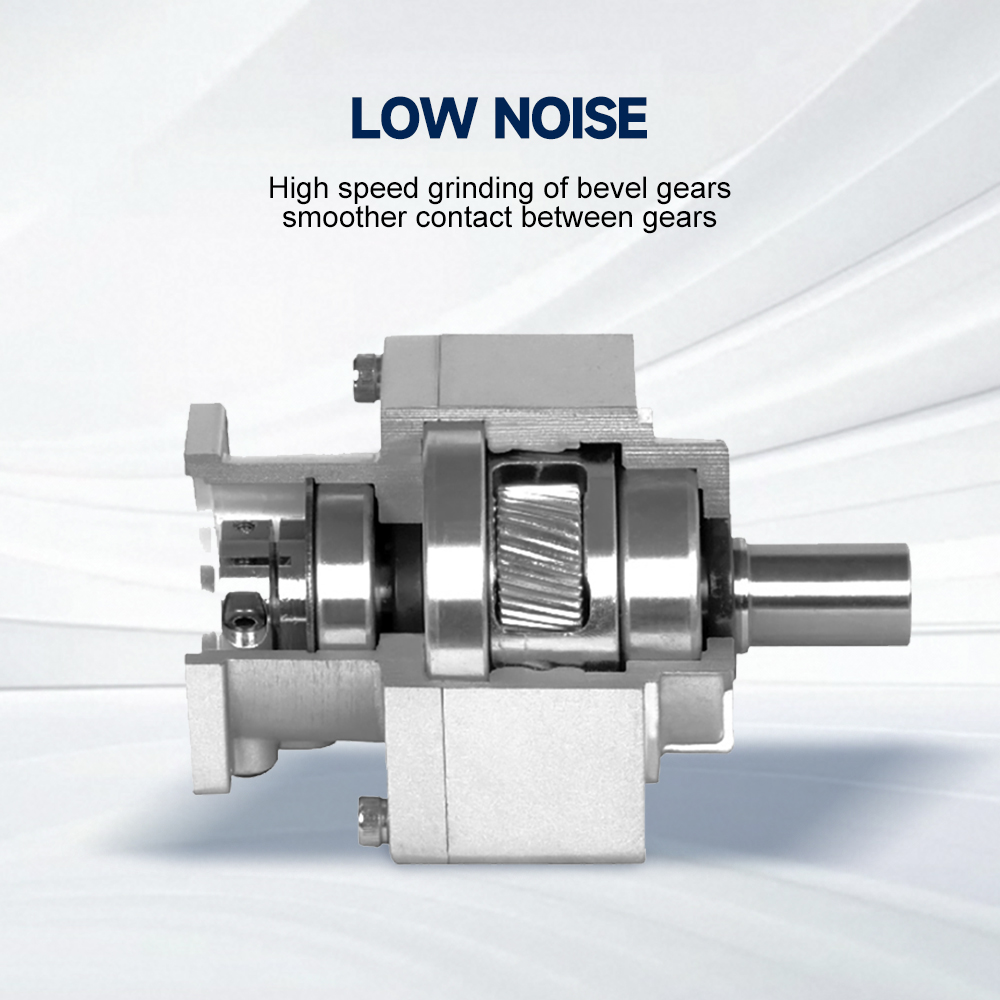

Helical gears are used to achieve smooth and quiet operation.
The backlash is less than 3 arcmin and the positioning is accurate.
The use of integral ball bearings greatly improves the rigidity and torque.
It can be installed on any motor in the world.
The use of grease with high viscosity which is not easy to separate effectively prevents the grease leakage.
No need to replace the grease in the product life period , and the installation is more convenient.

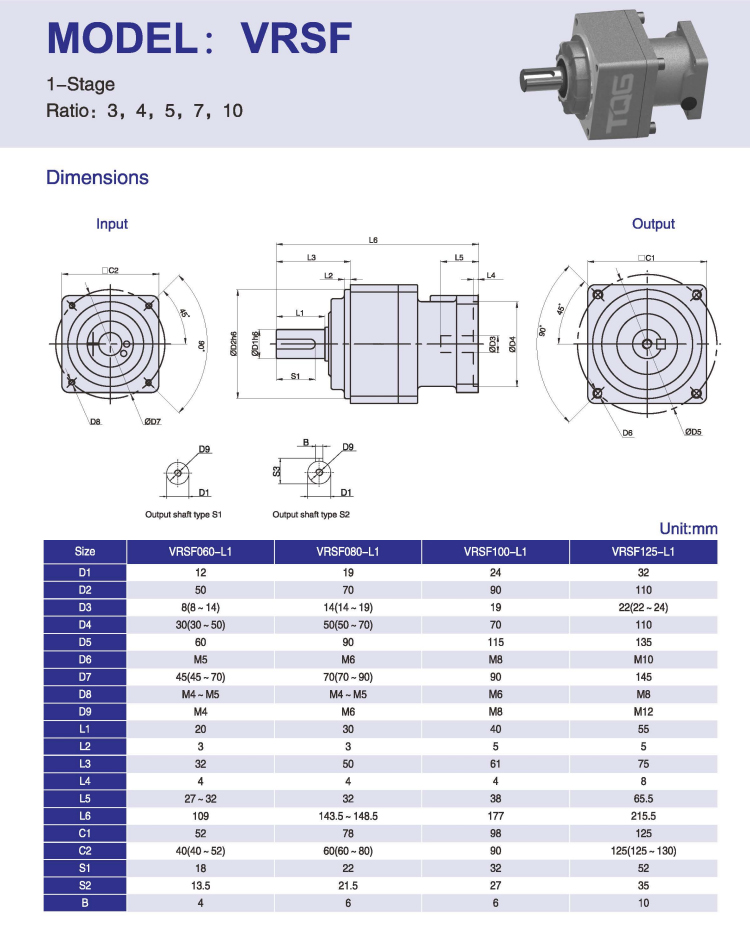

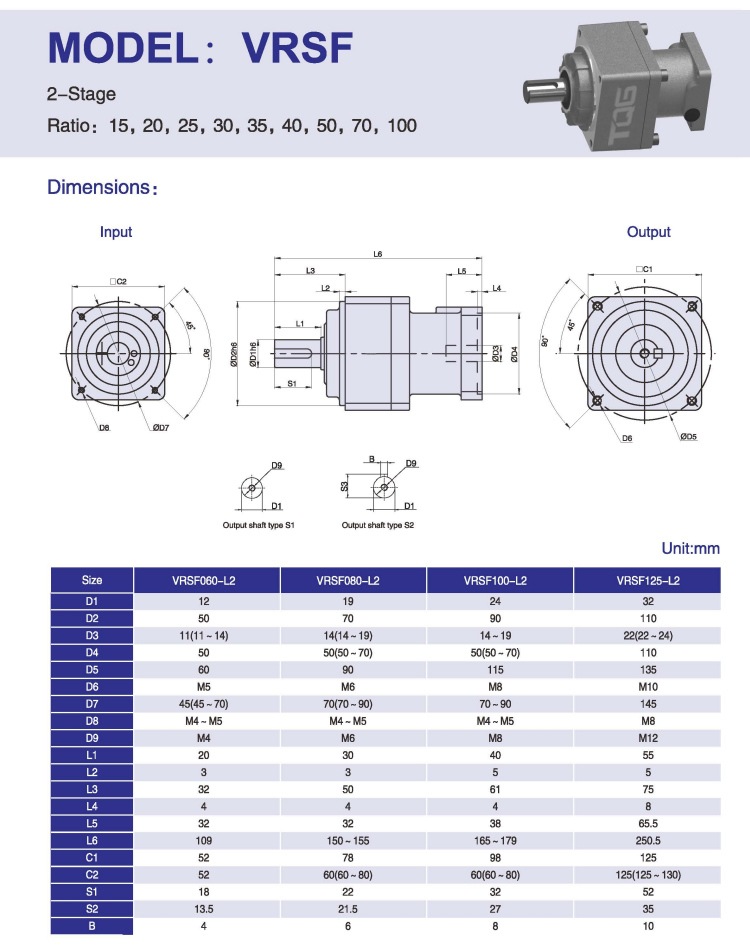

| Model | VRSF060, VRSF080, VRSF100, VRSF125 |
| Ratio | 1:3 ~ 1:100 |
| Backlash | 5arcmin ~ 10arcmin |
| Matching motor | Stepper motor, servo motor, BLDC motor |
| Efficiency | 94% ~ 97% |
| Color | Gold Black or gold blue |
A: We are manufacturer. Sincerely welcome to visit our company. And we can have a video conference first if you are convenient.
A: We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc. E-catalog is ready for you if you are interested.
A: Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
A: Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
A: Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
A: Generally speaking, we keep many stocks of regular standard product, if shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
