The backlash is less than 3 arcmin and the positioning is accurate.

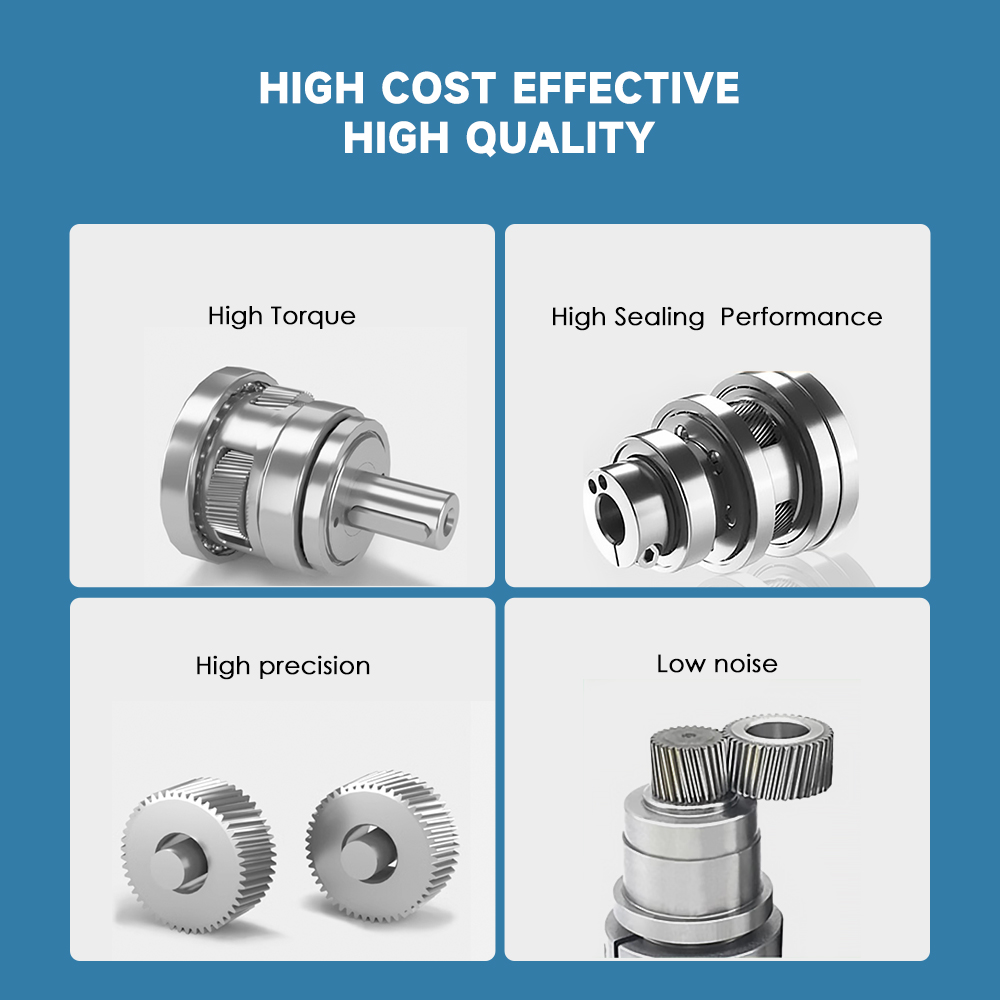

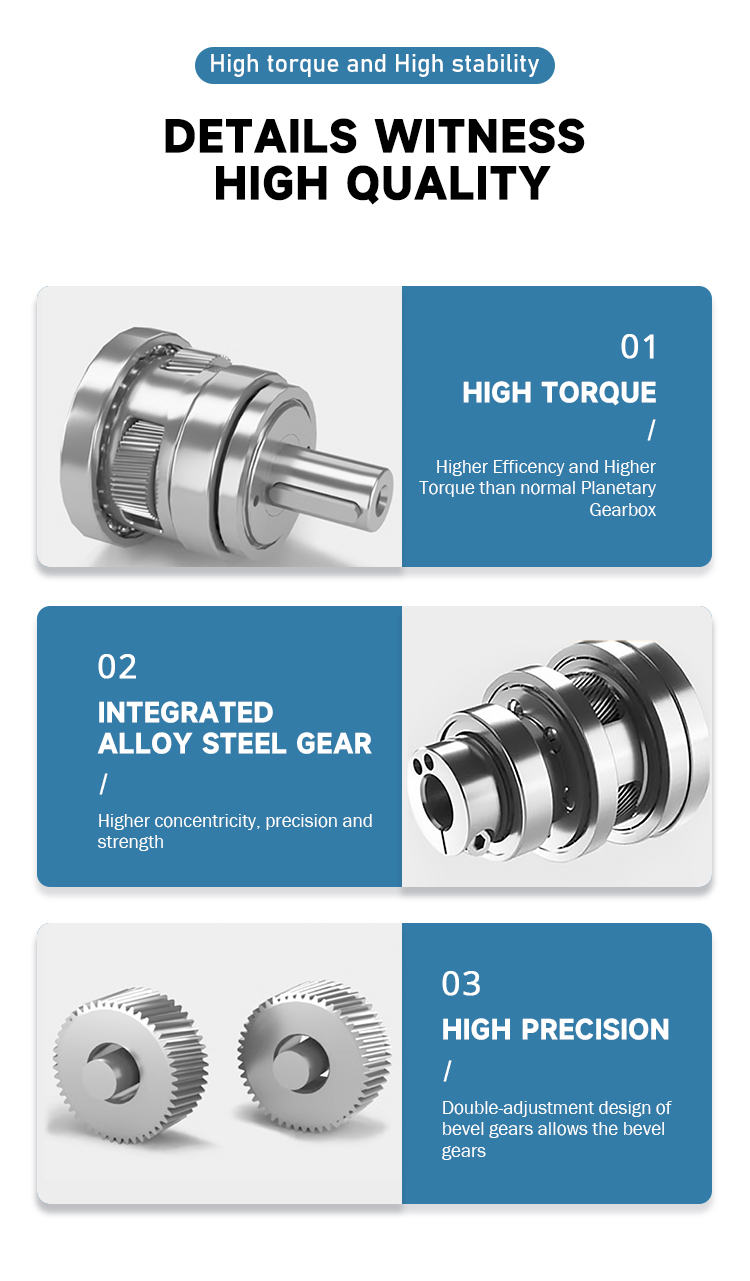

The use of integral ball bearings greatly improves the rigidity and torque.
The main output shaft adopts taper roller bearing to greater increase the radial and axial force.
It can be installed on any motor in the world.
The use of grease with high viscosity which is not easy to separate effectively prevents the grease leakage.
No need to replace the grease in the product life period, and the installation is more convenient.
| Rated Input Speed | 2000 ~ 5000 RPM |
| Max Input Speed | 2500 ~ 10000 RPM |
| Backlash |
1-stage: P1 ≤ 3 arcmin 2-stage: P1 ≤ 5 arcmin |
| Efficiency | 93% |
| Protection Grade | IP 65 |
| Mounting Position | Any Direction |
A: The VRS Series features high precision design with a backlash of less than 3 arcmin for 1-stage (P1: ≤ 3) and less than 5 arcmin for 2-stage (P1: ≤ 5), ensuring accurate positioning.
A: The main output shaft adopts a taper roller bearing to significantly increase the load capacity for both radial and axial forces.
A: Yes. With multiple methods of flange and connector configurations, the VRS Series gearbox can be easily installed on any standard motor globally.
A: The gearbox uses grease with high viscosity which is not easy to separate, effectively preventing grease leakage during operation.
A: The VRS Series requires convenient maintenance with no need to replace the grease throughout the product life period, facilitating a convenient and worry-free installation.
A: The gearbox delivers a high working efficiency of 93% and features an IP 65 protection rating, allowing it to mount in any direction.
