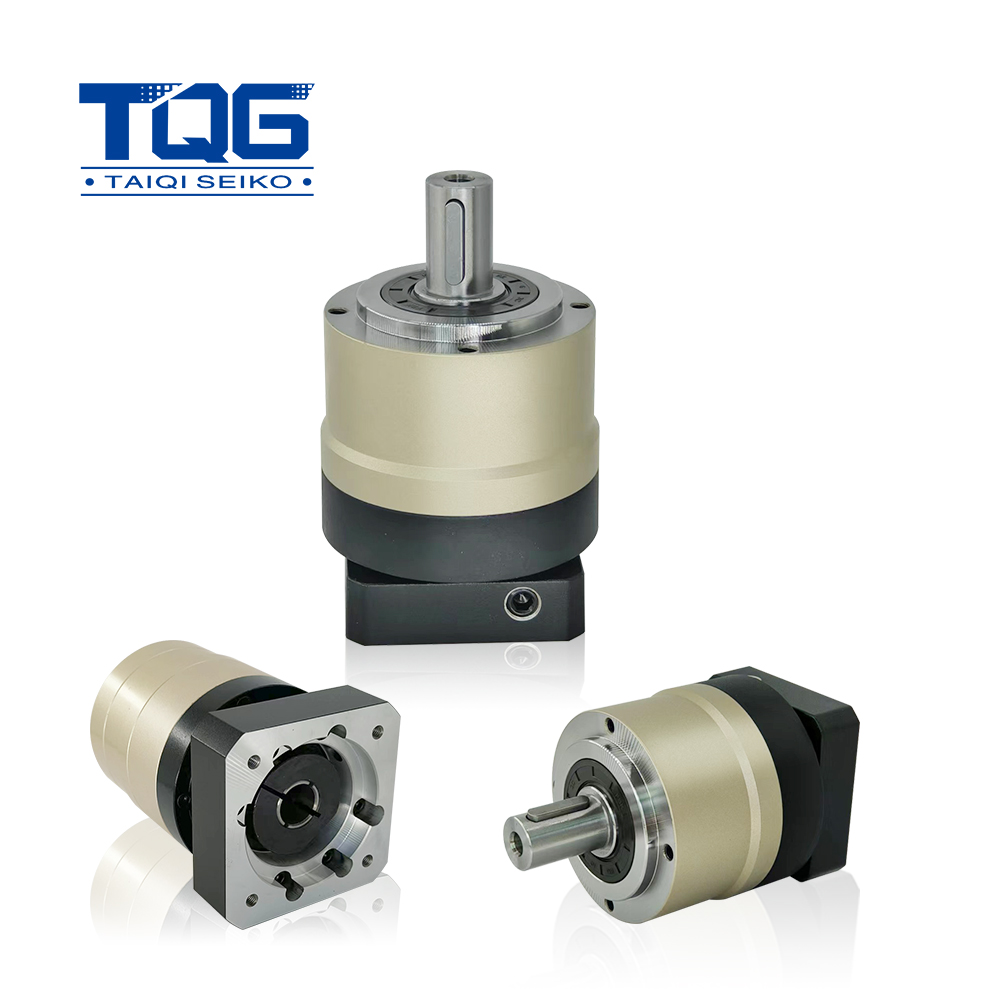

Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
1 / 5
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical
Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical

Low Backlash Ratio 3-10:1 High Precision Planetary Gear Reducer Gearbox IP65 Stainless Steel for Stepper Motor Robot Medical

Send Inquiry

Product Description

Planetary Gearbox Banner 1
Planetary Gearbox Banner 2

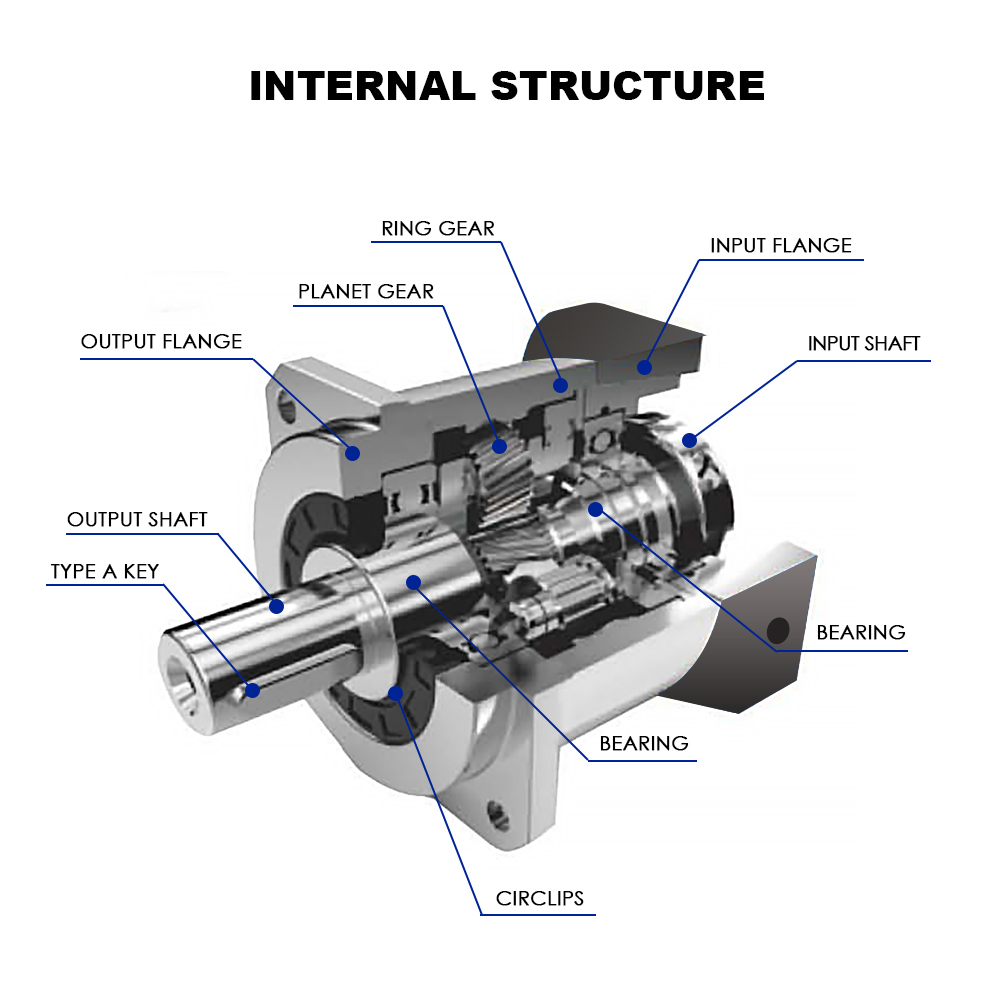

Planetary Gearbox VRL Series Component
Planetary Gearbox VRL Series
1
Quiet operation
Helical gears are used to achieve smooth and quiet operation.
2
High precision
The backlash is less than 3 arcmin and the positioning is accurate.
3
High rigidity & torque
The use of integral ball bearings greatly improves the rigidity and torque.
4
Methods of flange and connector
It can be installed on any motor in the world.
5
No grease leakage
The use of grease with high viscosity which is not easy to separate effectively prevents the grease leakage.
6
Convenient maintenance
No need to replace the grease in the product life period, and the installation is more convenient.
Planetary Gearbox VRL Series Specifications Drawing
Model VRL070, VRL090, VRL120, VRL155, VRL205, VRL235
Ratio 1:3 ~ 1:100
Precision P2: L1 ≤ 6arcmin ; L2 ≤ 8arcmin
P1: L1 ≤ 3arcmin ; L2 ≤ 5arcmin
P0: L1 ≤ 1arcmin ; L2 ≤ 3arcmin
Torque 14 ~ 2000Nm
Using Life 22000h
Matching motor Any brands of servo motors, stepper motors or brushless DC motors

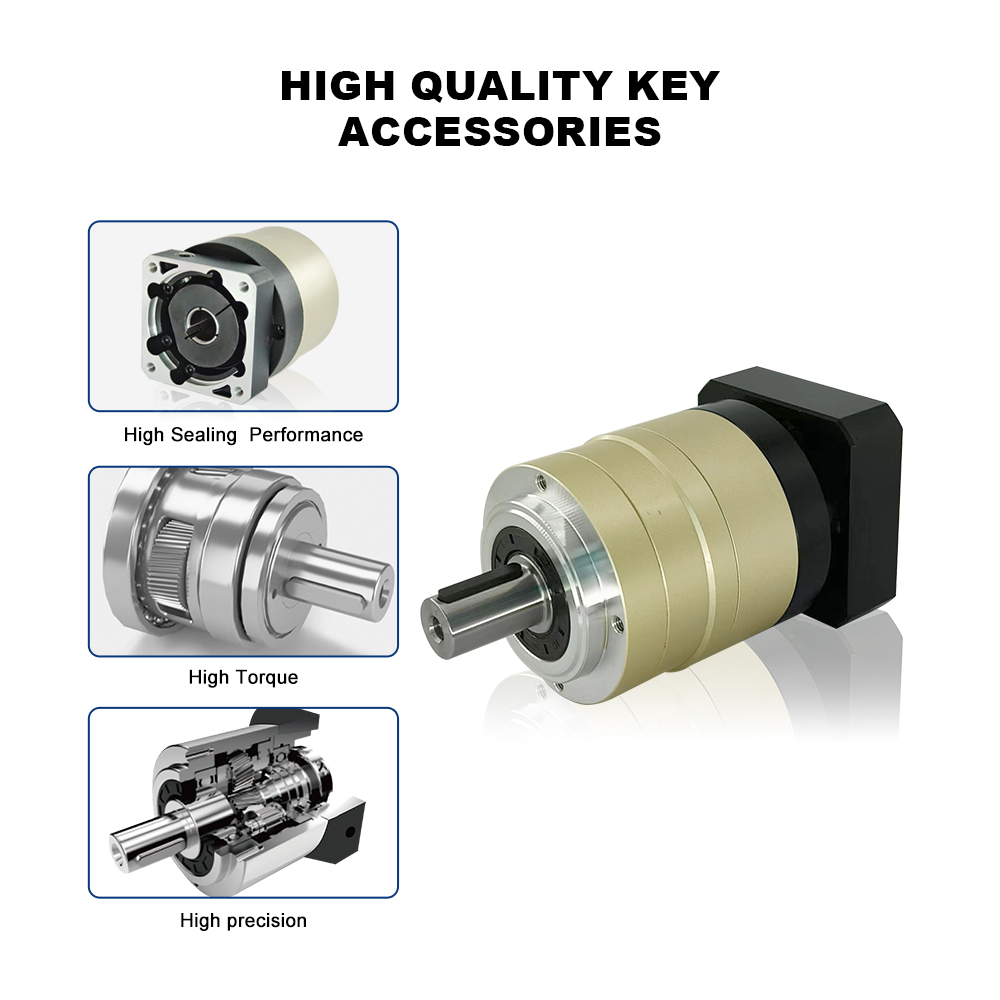

Gearbox Detail 1
Gearbox Detail 2
Gearbox Detail 3
Gearbox Detail 4
Planetary Gearbox Product Info
Production Process 1
Production Process 2
Quality Control
Warehouse and Assembly
Frequently Asked Questions
Are you manufacturer or trader?
We are manufacturer. Sincerely welcome to get in touch. And we can have a video conference first if you are convenient.
What're your main products?
We currently supply planetary gearbox, harmonic gearbox, steering gearbox, RV cycloidal pin-wheel gearbox, worm gearbox, servo motor and stepper motor, electric cylinder and slide, coupling, etc. E-catalog is ready for you if you are interested.
How to select a suitable gearbox?
Please show us your motor details or drawings. And also please advise working condition, load, output torque, output speed or reduction ratio, backlash, etc. Then we will recommend the suitable model. If you are unable to show all of above parameters, please contact us, then we will guide you step by step.
Can I get the 3D and 2D drawings?
Sure, we have the standard drawings. Also the input size of gearbox can be customized according to different motors.
Do you have an individual design service?
Yes, we would like to design products individually for our customers, but it may need some mold developing cost and design charge.
What's your lead time?
Generally speaking, we keep many stocks of regular standard product. If shortage of stocks, it will need 15-20 days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
