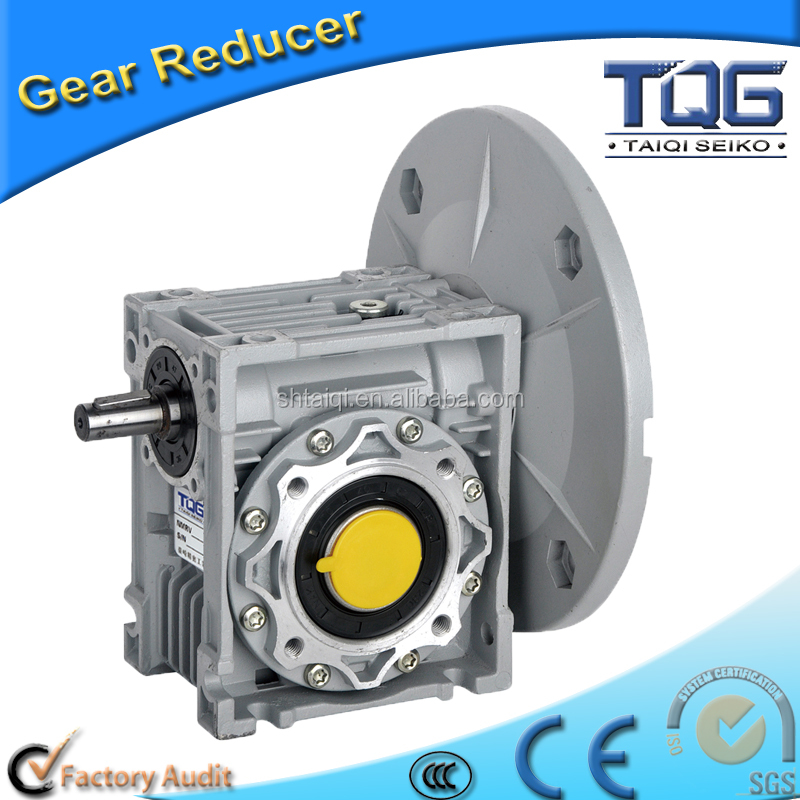

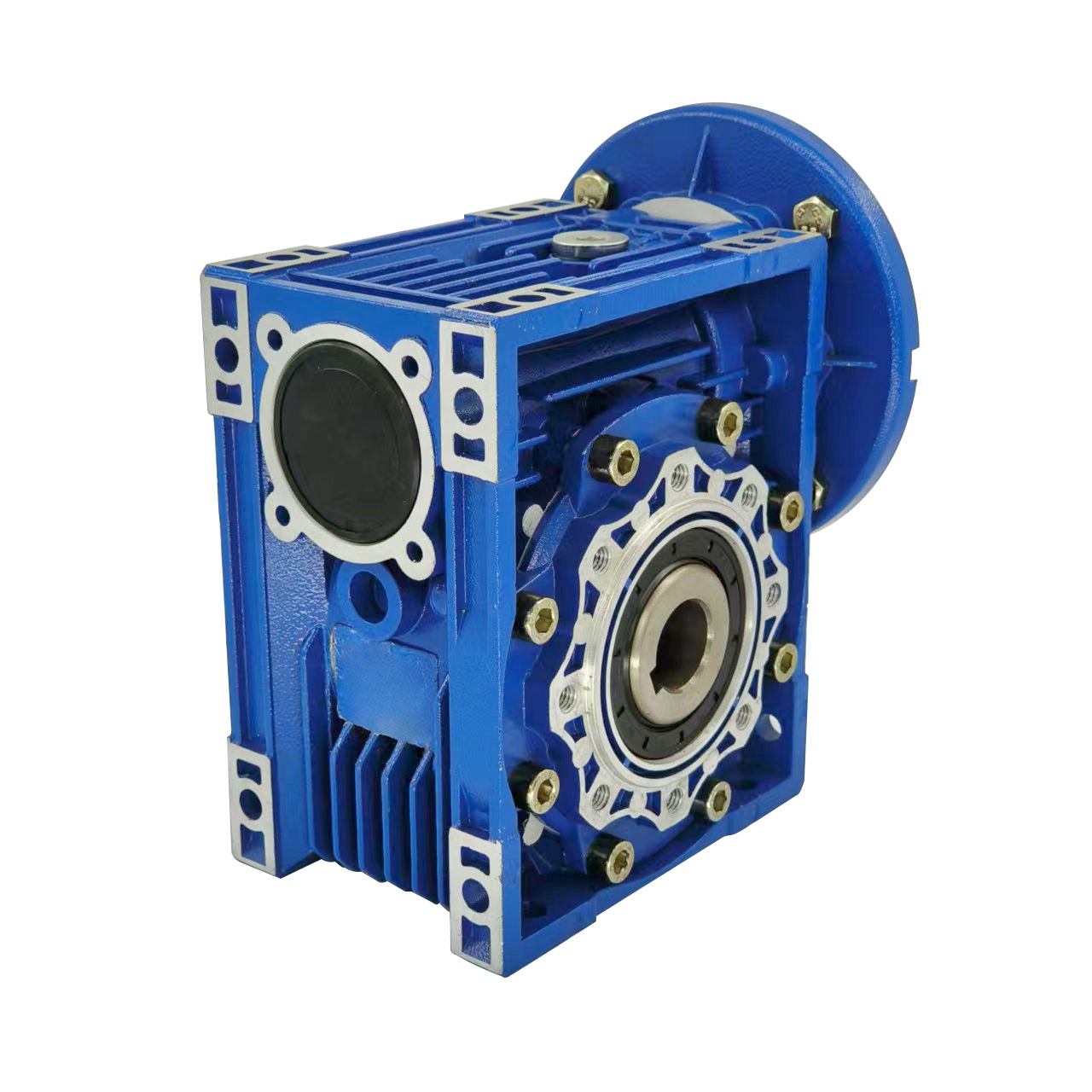

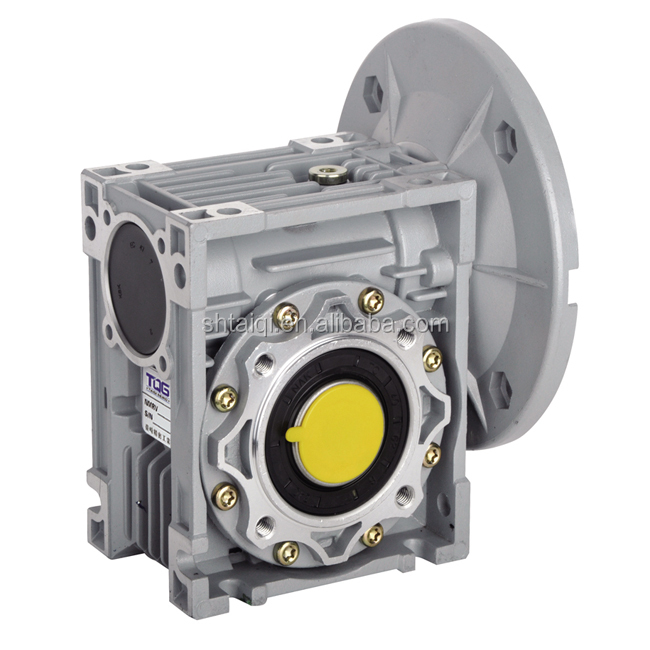

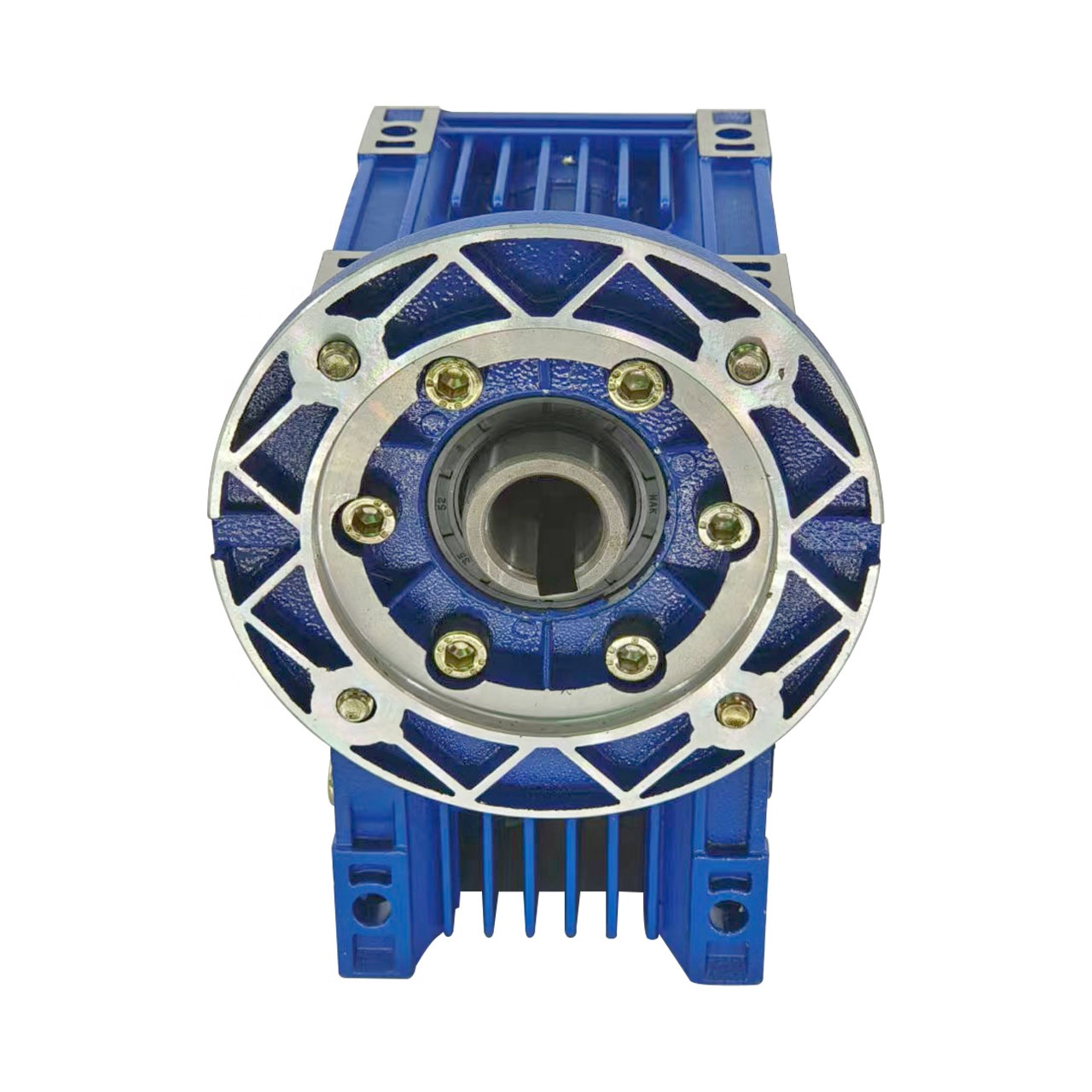

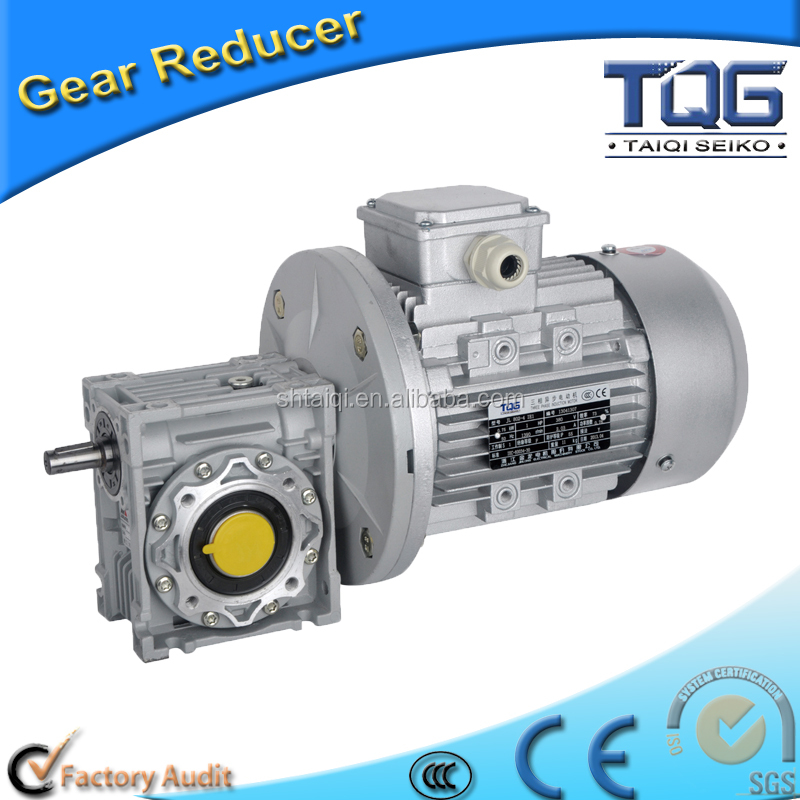

Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
1 / 5
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output
Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output

Stable Transmission Ratio 1:7.5-1:50 90W TQG Worm Speed Gear Reducer Steel/Cast Iron 20CrMnTiH Gear 1 HP Any Direction Output

Send Inquiry

Product Description

Worm Speed Gear Reducer Banner
Product View
Product Description

Inner Structure of Worm Speed Gear Reducer:

The Worm Speed Gear Reducer is specifically designed to reduce rotational speed while significantly enhancing the torque of the motor, ensuring efficient mechanical performance.

Key Features
1
Cast by superior quality aluminum alloy, light and rustless.
2
Delivers large output torque for demanding applications.
3
Steady transmission with low noise, capable of continuous long-time working under harsh conditions.
4
High efficiency of heat radiating.
5
Beautiful design, durable construction, and compact size.
6
Adaptable to omnibearing installation requirements.
Main Materials
  • Housing: Aluminum alloy (frame size: 025-090); Cast Iron (frame size: 110-150).
  • Worm: 20 Cr, carbonizing and quenching, tooth surface hardness 56-62HRC, carbonized layer thickness 0.3-0.5mm after accurate grinding.
  • Worm wheel: High-performance wearable stannum bronze.
Technical Specifications
Rated Input Power (KW) Output Speed (R/Min) Ratio Rated Output Torque (Nm) Permitted Radial Load (N) Service Factor Gear Unit Type Motor Type
0.09 373.3 7.5 2 399 3.9 NMRV025 56B14 5612
280102.64393.4
186.7153.85032.4
140204.95531.8
93.3306.76331.3
70408.56971.1
5650107510.9
0.09 186.7 7.5 3.9 503 2.8 NMRV025 56B14 5624
140105.15532.4
93.3157.36331.6
70209.36971.3
46.730137981.0
3540168780.8
Structure Diagram
Product Details Gallery
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Manufacturing Excellence
Company Overview
Production Line
Factory Environment
Certifications & Feedback
Certificates
Customer Feedback
Logistics and Payment
Shipping Methods
FAQ Overview
Frequently Asked Questions
What materials are used for the gear reducer housing?
We use high-quality aluminum alloy for frame sizes 025-090 to ensure it is lightweight and rustproof. For larger frame sizes (110-150), durable cast iron is used for enhanced strength.
Can this worm gear reducer operate in harsh environments?
Yes, our reducers are designed for steady transmission and low noise, making them suitable for continuous, long-term operation even under challenging industrial conditions.
How is the heat dissipation efficiency of the aluminum alloy housing?
The aluminum alloy material used in our housing is specifically chosen for its superior thermal conductivity, ensuring high heat radiation efficiency during operation.
What makes the worm and worm wheel durable?
The worm is made of 20 Cr steel with carbonizing and quenching treatments (56-62HRC), while the worm wheel is crafted from wearable stannum bronze for maximum wear resistance.
Are different mounting positions supported?
Absolutely. The compact and versatile design allows the reducer to adapt to omnibearing (multi-directional) installation requirements.
What is the main function of this reducer?
It is primarily used to reduce the rotational speed of a motor while simultaneously increasing the output torque to meet specific machinery needs.
