Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
1 / 5
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors
Planetary Gearbox Speed Reducer for Servo and Stepping Motors

Planetary Gearbox Speed Reducer for Servo and Stepping Motors

Send Inquiry

Product Description

Product Banner Product Overview
⚙️ Product Description

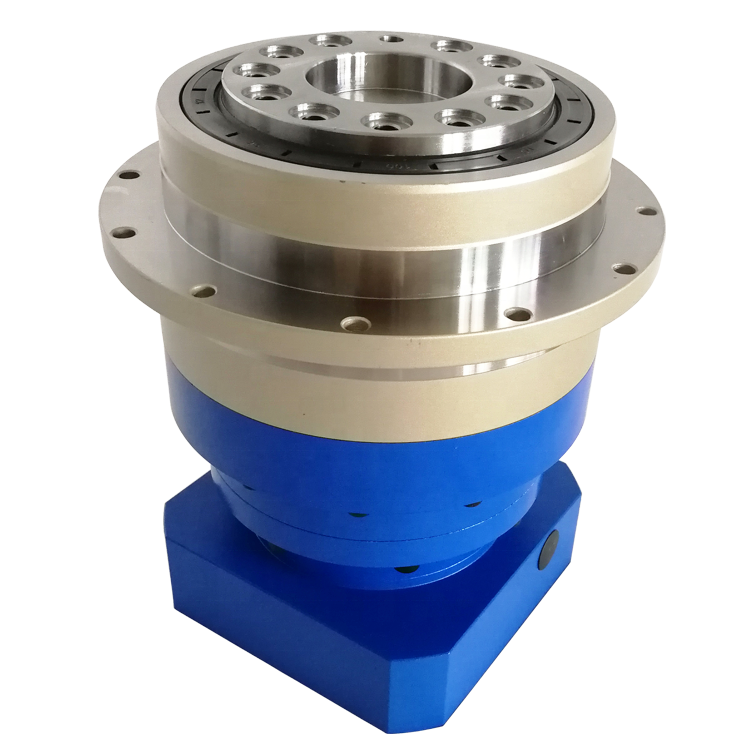

Product Specification
Model PAD047, PAD064, PAD090, PAD110, PAD140, PAD200, PAD255
Ratio 1:3~1:100
Precision P2: L1 ≤ 6arcmin; L2 ≤ 8arcmin
P1: L1 ≤ 3arcmin; L2 ≤ 5arcmin
P0: L1 ≤ 1arcmin; L2 ≤ 3arcmin
Torque 14~2000Nm
Using Life 22000h
Input power 0.1~15KW
Machine motor Any brands of servo motors, stepper motors or brushless DC motors
🔍 Product Details
Detail 1

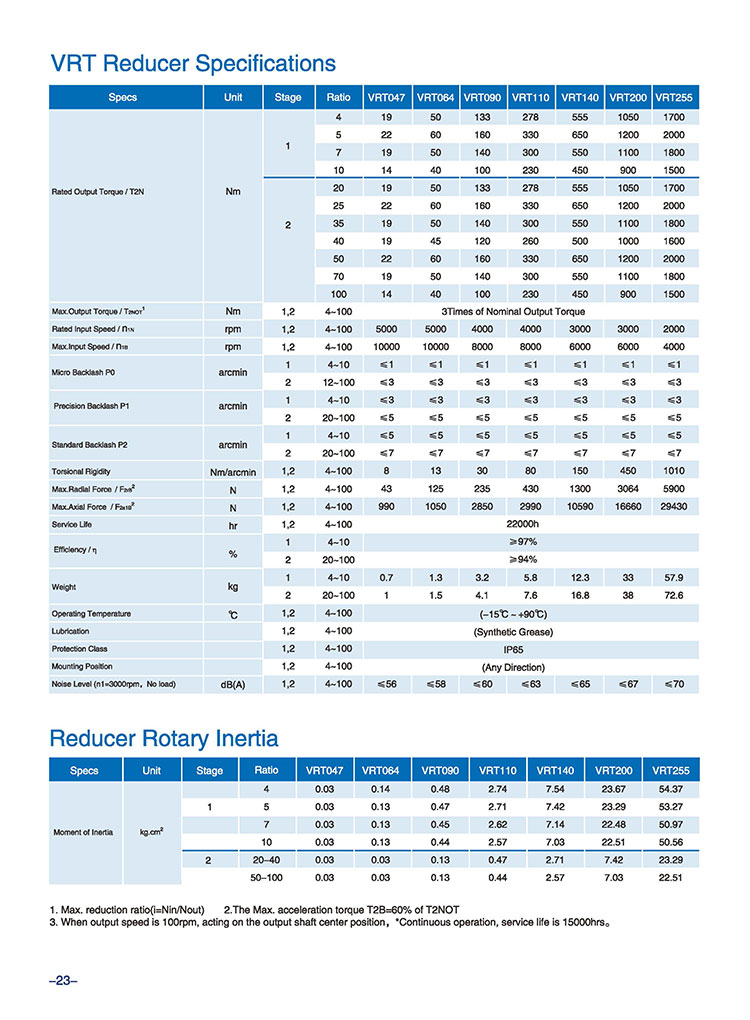

Detail 2
🏢 Company Profile
Company 1
Company 2
🏭 Our Factory
Factory View
📜 Certificate
Certificates
⭐ Customer Feedback
Customer Feedback
🚚 Logistics and Payment
Logistics
❓ FAQ
1. What is the precision range of the PAD series planetary gearbox?
The PAD series offers three precision levels: P2 (standard), P1 (precision), and P0 (ultra-precision), with backlash as low as ≤ 1 arcmin for single-stage models.
2. What types of motors are compatible with this gearbox?
Our gearboxes are designed for high compatibility and can be matched with any brand of servo motors, stepper motors, or brushless DC motors.
3. What is the expected service life of the product?
Under normal operating conditions and proper maintenance, the PAD series planetary gearbox has a service life of up to 22,000 hours.
4. What reduction ratios are available?
We provide a wide range of reduction ratios from 1:3 up to 1:100 to meet various speed and torque requirements.
5. What is the maximum torque capacity?
The PAD series supports a torque range from 14Nm up to 2000Nm, depending on the specific model and ratio selected.
6. Are the gearboxes suitable for high-power applications?
Yes, the series supports input powers ranging from 0.1KW up to 15KW, making them suitable for both small-scale and industrial heavy-duty applications.
FAQ Graphic
