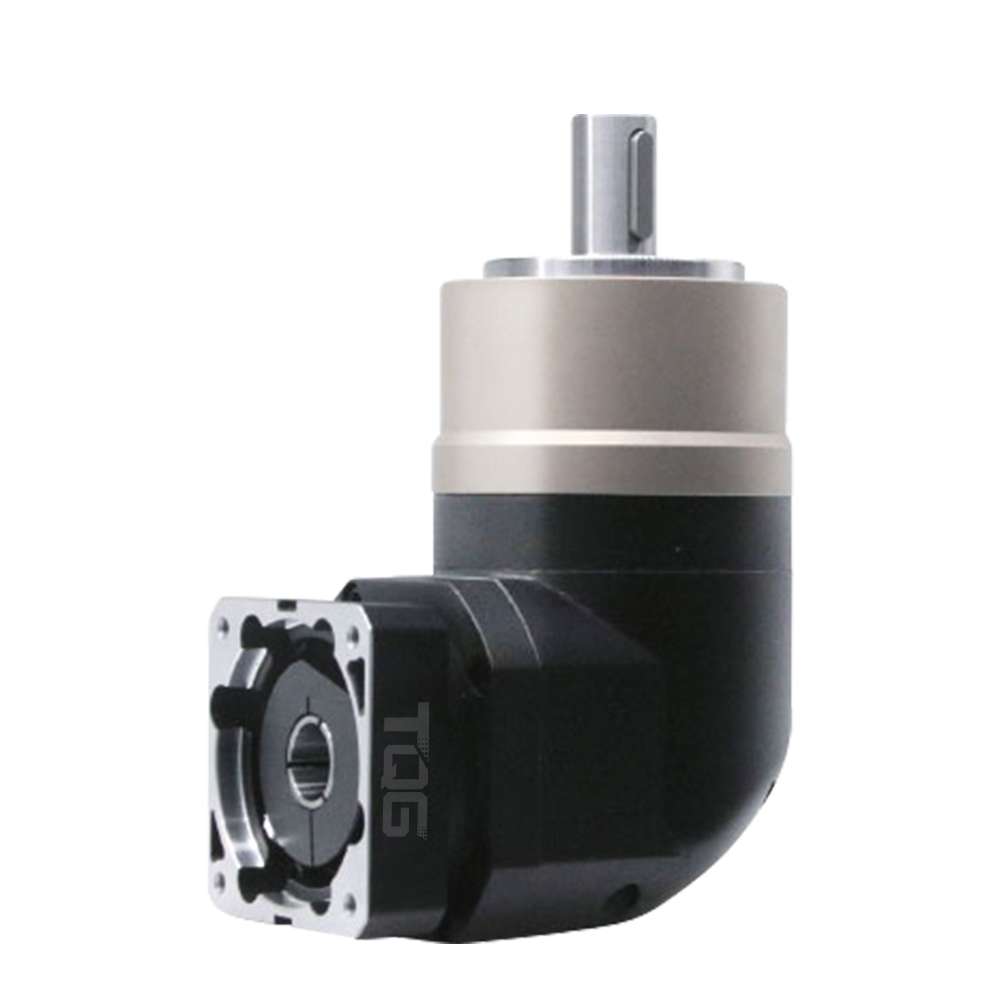

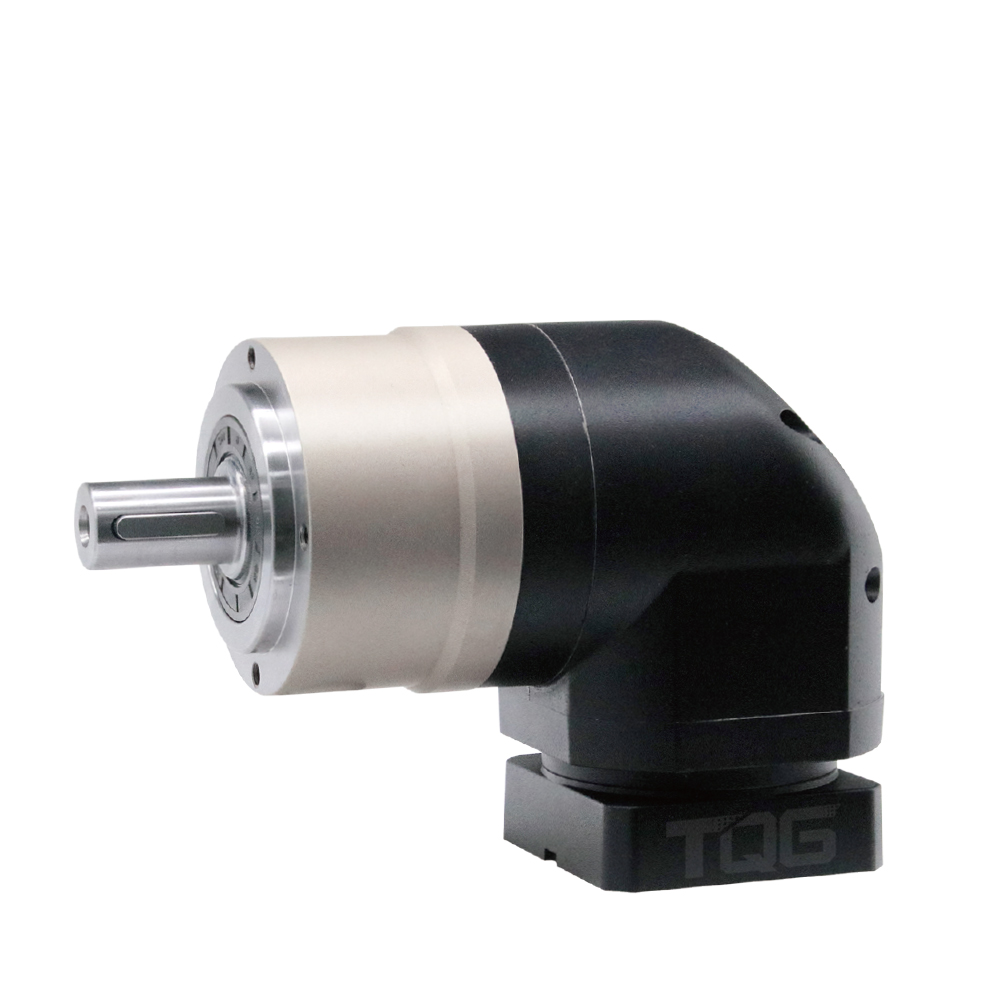

Planetary Gearbox EVL Series

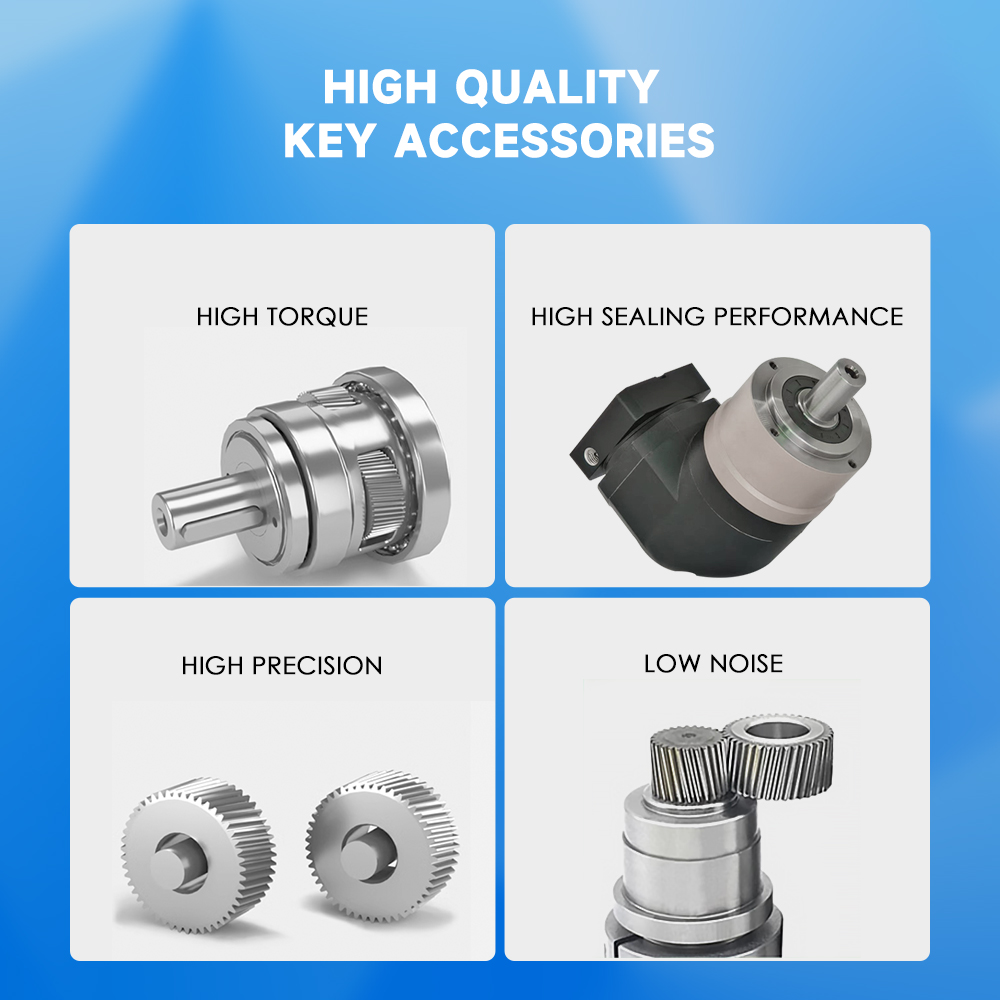

- Quiet operation: Helical gears are used to achieve smooth and quiet operation.
- High precision: The backlash is less than 3 arcmin and the positioning is accurate.
- High rigidity & torque: The use of integral ball bearings greatly improves the rigidity and torque.
- Methods of flange and connector: It can be installed on any motor in the world.
- No grease leakage: The use of grease with high viscosity which is not easy to separate effectively prevents the grease leakage.
- Convenient maintenance: No need to replace the grease in the product life period, and the installation is more convenient.
| Precision Grade | P0 ( ≤ 2 arcmin, ≤ 4 arcmin ) P1( ≤ 4 arcmin, ≤ 6 arcmin ) |
| Service Life | 20000h |
| Ratio | 1:3~1:200 |
| Rated Torque | 3~2000Nm |
| Mounting Position | Any Direction |
| Noise Level | ≤ 70 ~ ≤ 56 |

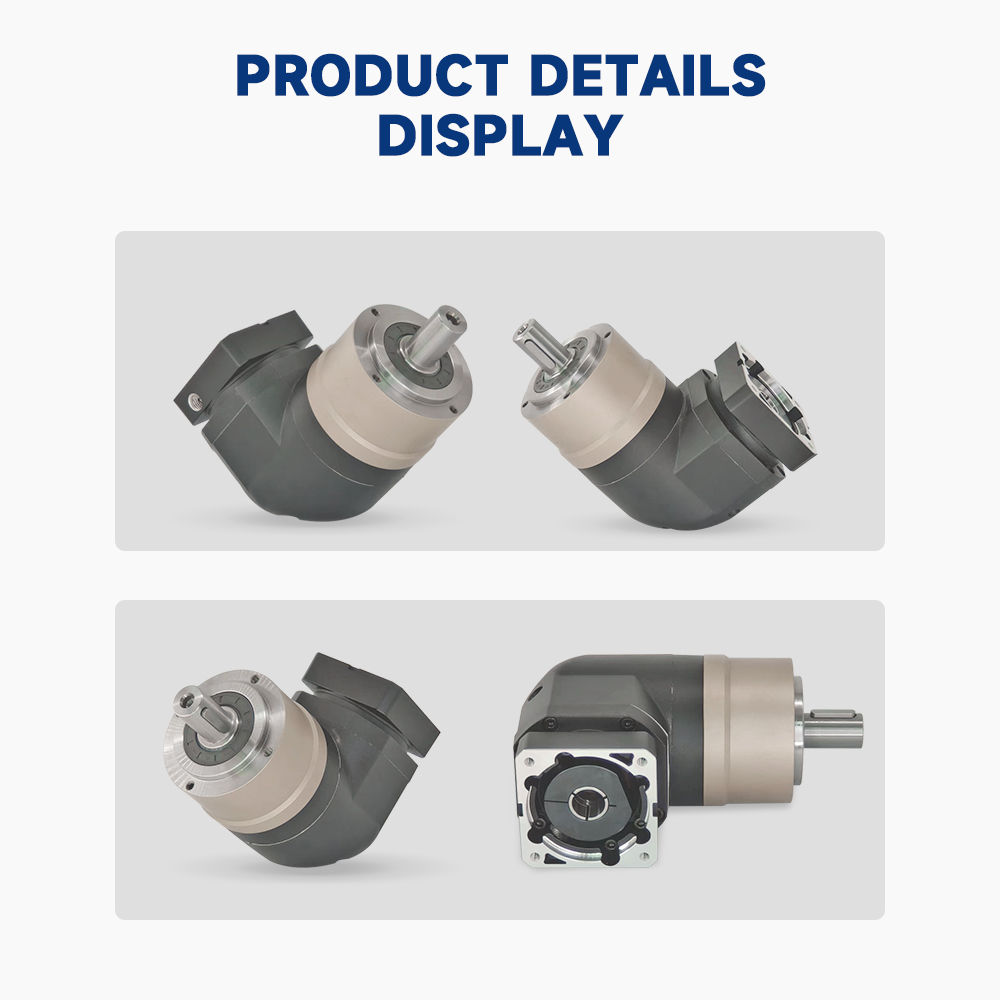

Product Details Gallery
FAQ
1. What is the backlash accuracy of the EVL series?
The EVL series provides high precision with a backlash of less than 3 arcmin.
2. Is the gearbox maintenance-free?
Yes, it features a grease design that requires no replacement throughout the product's lifespan.
3. Can this gearbox be installed on different motor brands?
Yes, the EVL series uses a flexible flange and connector method that allows it to be installed on any motor in the world.
4. How is the noise controlled during operation?
The gearbox utilizes helical gears to ensure smooth and quiet operation, maintaining a noise level between 56 and 70 dB.
5. Is there a specific mounting limitation?
No, the EVL series is designed to be installed in any direction to suit your application needs.
6. What is the expected service life?
The rated service life for the EVL series gearbox is 20,000 hours.
