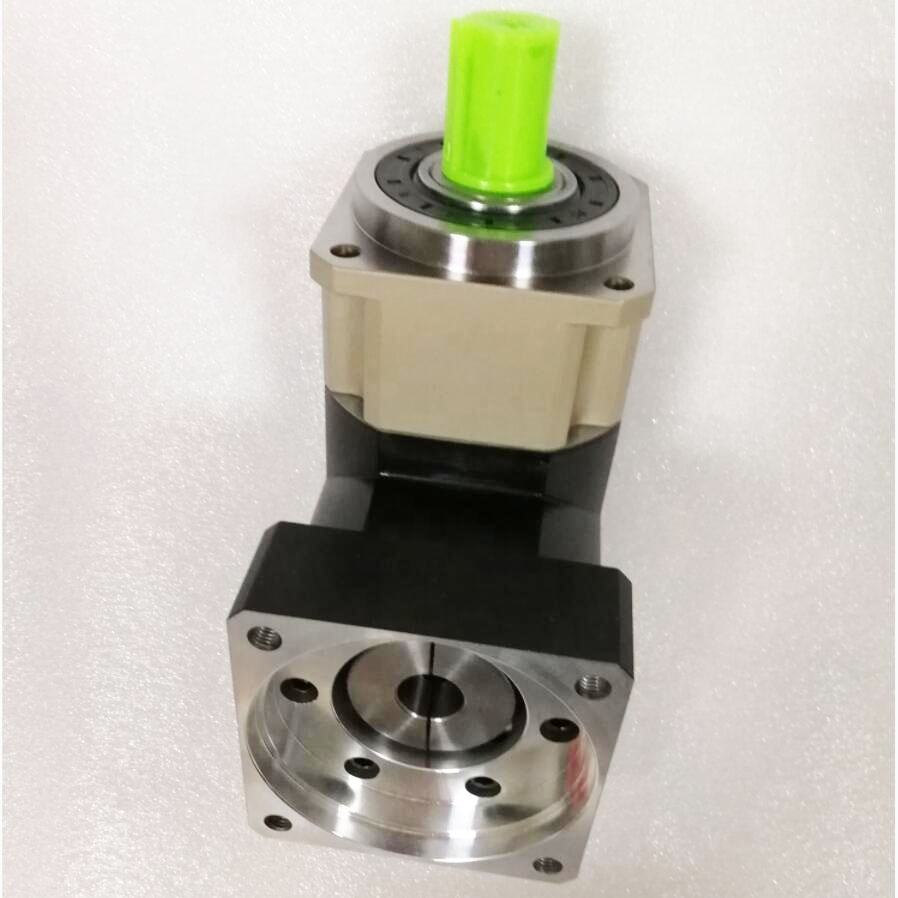

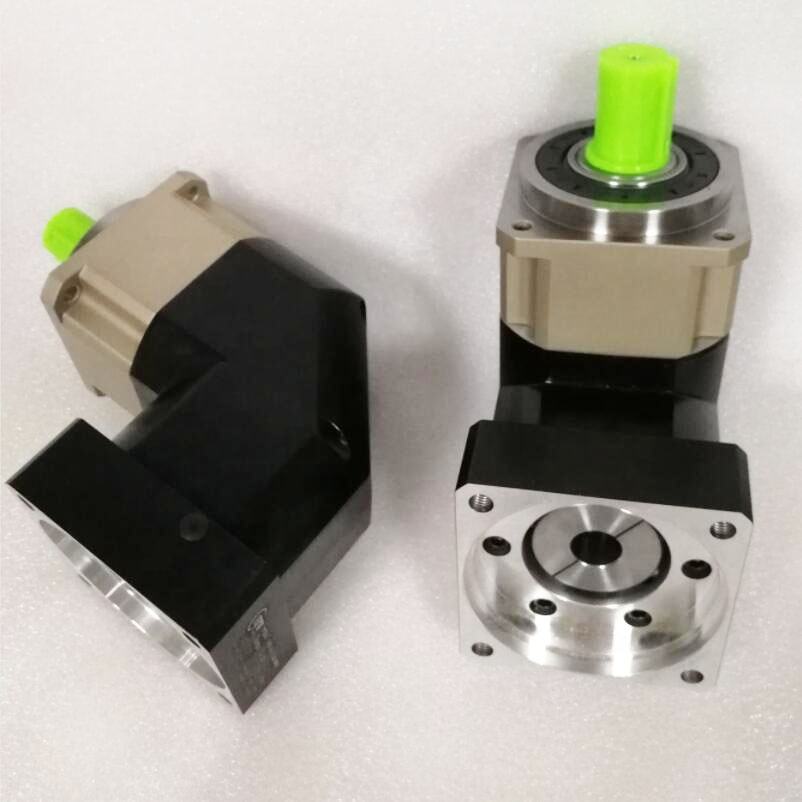

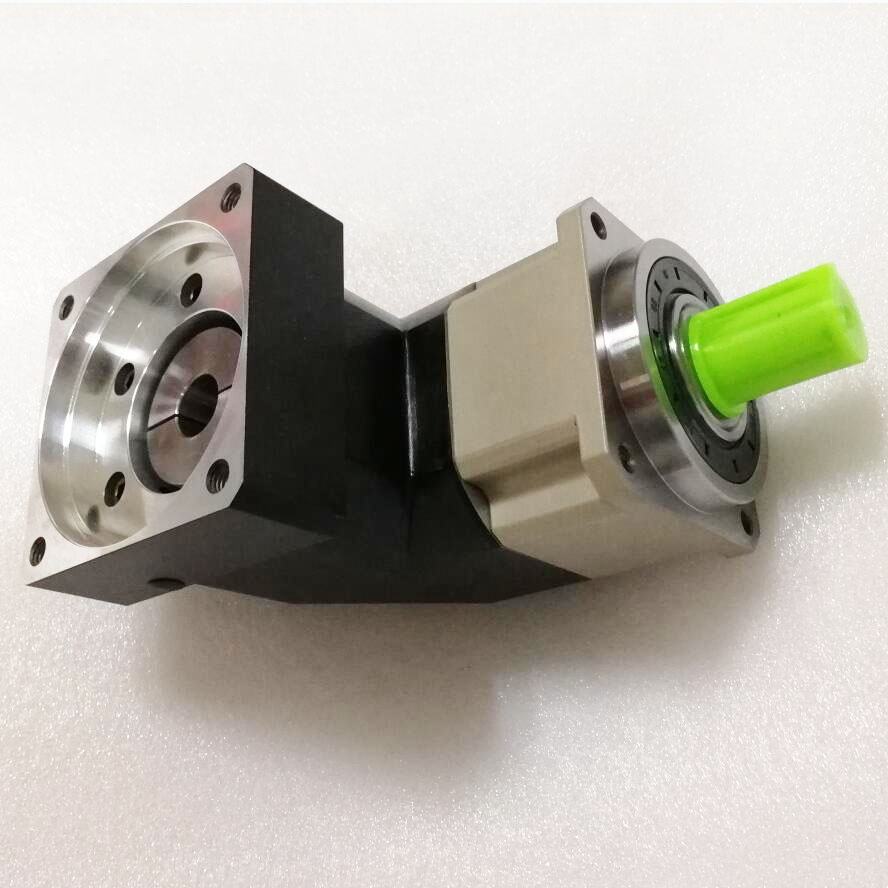

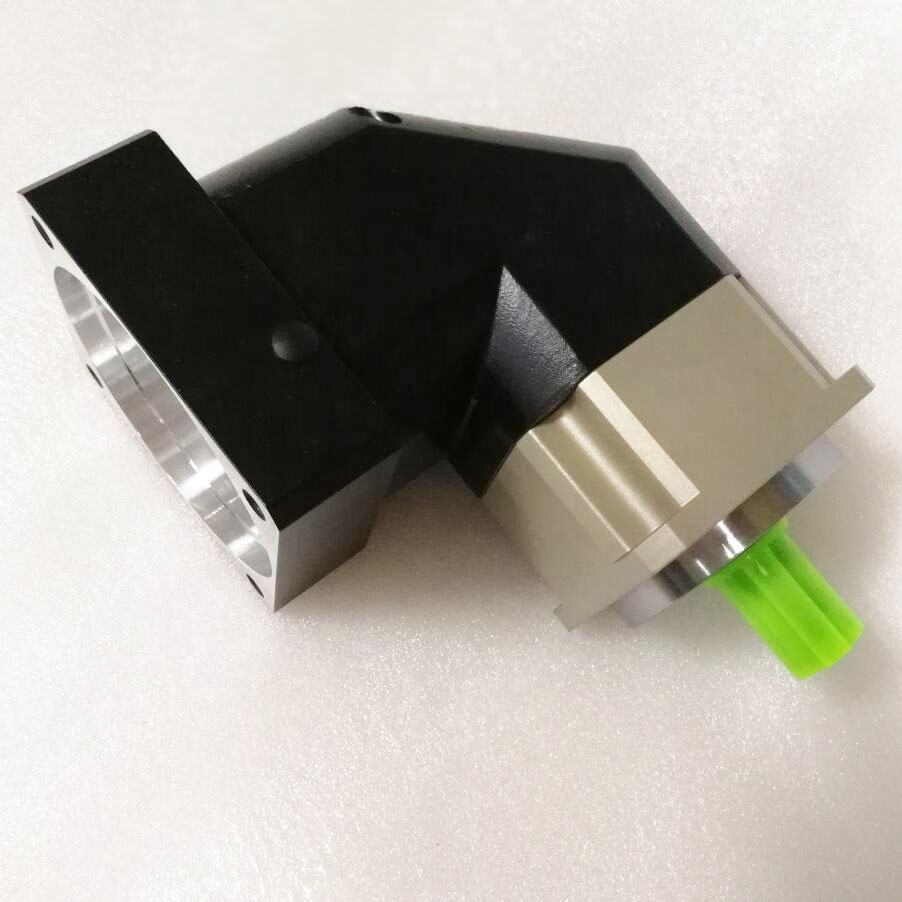

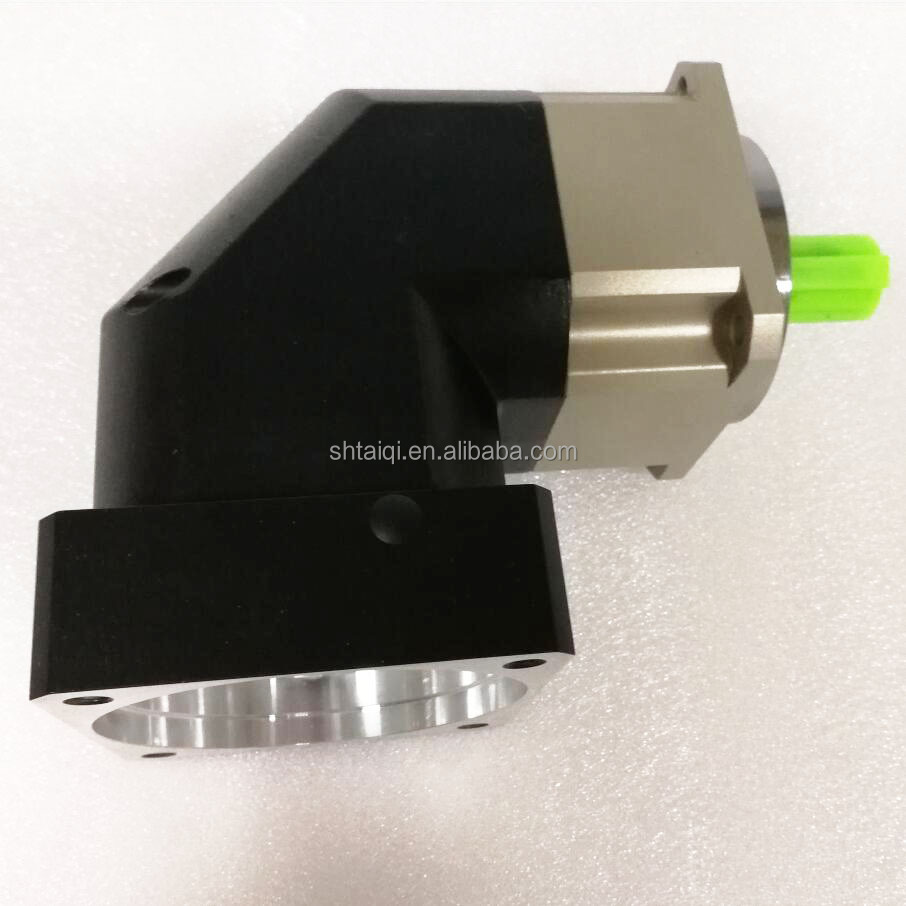

Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
1 / 5
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes
Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes

Alloy Steel Par142 Right Angle Reducer 90 Degree Diagonal Gearbox for Battery Equipment Planetary Gearboxes

Send Inquiry

Product Description

Product Description

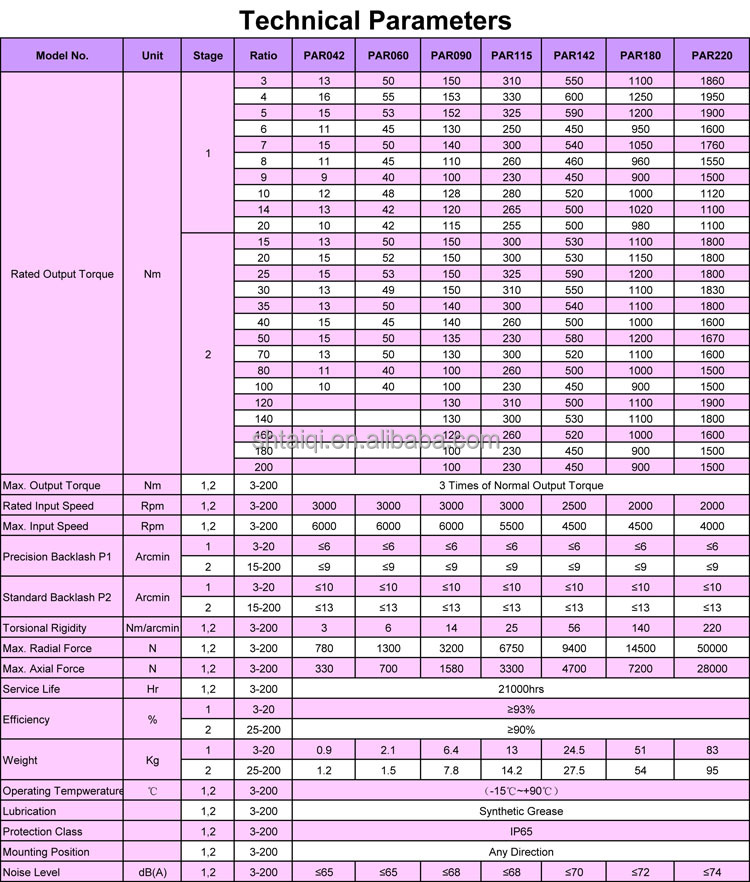

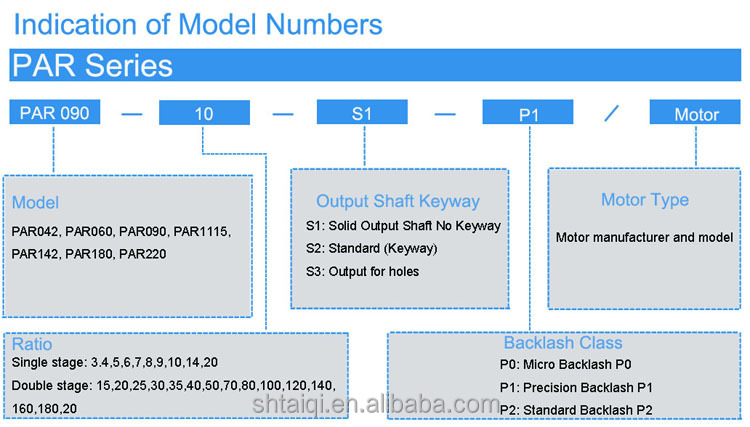

ModelPAR042, PAR060, PAR090, PAR115, PAR142, PAR180, PAR200
Ratio1:3 ~ 1:200
Backlash5arcmin ~ 10arcmin
Matching motorStepper, servo, BLDC motor
Efficiency90%~93%
MOQ1pc

PAR series features 90-degree input via helical bevel gear, and large tapered roller bearings making it ideal for high radial and axial forces. This gearbox combines a compact, light yet rigid housing with full compatibility with standard motor adapters. Utilizing 100% optimized Helical Gearing, it delivers the highest precision, torque, and quiet operation. Designed for motion control applications requiring redirected power flow, the PAR series enhances transmission efficiency and reduces running costs. It offers high positioning accuracy, even in reverse mode, and is maintenance-free with lifetime lubrication, allowing for flexible mounting in any position.

Product Details

Factory & Quality Standards

FAQ

Q1: Which types of motors are compatible with the PAR series gearbox?
The PAR series is designed to be compatible with a wide range of standard servo motors, stepper motors, and brushless DC motors.
Q2: What is the main advantage of the PAR series right-angle design?
The 90-degree input via helical bevel gear allows for redirection of power flow in compact spaces, while tapered roller bearings support high radial and axial loads.
Q3: Is maintenance required for these gearboxes?
No, the PAR series comes with lifetime lubrication, eliminating the need for periodic maintenance after installation.
Q4: Can the gearboxes be installed in any position?
Yes, the design allows for total flexibility, meaning they can be installed and operated in any mounting position to suit your specific application.
Q5: How high is the positioning accuracy of the PAR series?
These gearboxes offer high precision positioning, which is particularly effective even during reverse mode operations.
